Automatic Twin Screw Plastic Profile Extrusion Line , Plate Pvc Extrusion Machine

Automatic Twin Screw Plastic Profile Extrusion Line , Plate Pvc Extrusion Machine

Quick detail:

PVC window profile extrusion machine

1, for PVC profile
2, Max.width 300mm
3, ISO9001 certified manufacturer

Description:

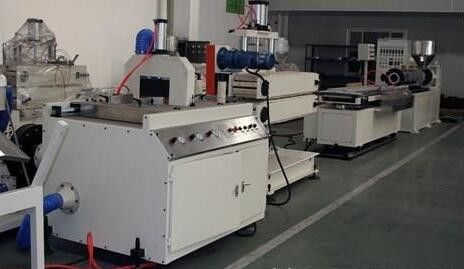

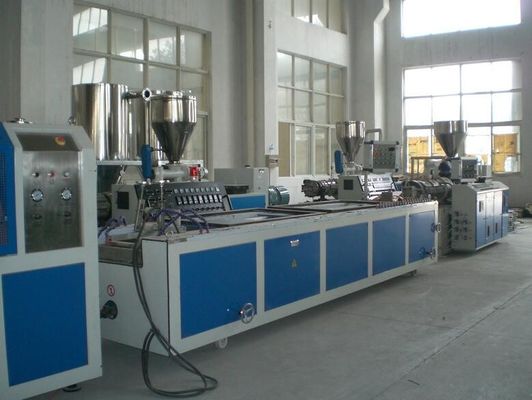

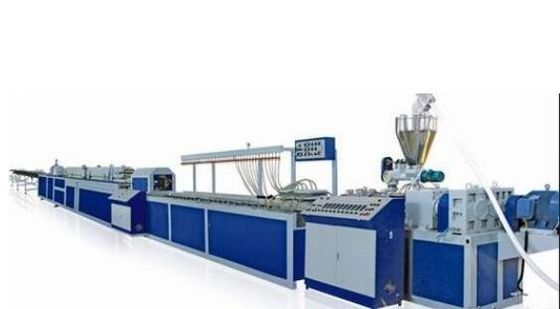

1.PVC window profile extrusion machine is mainly used in PVC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

2. Capacity of main frame can be optionally chosen from 60-700 kgs/hour. The haul-off unit has applied unique lift technique of our co. Its work is stable, its reliability is good, its pulling force is large. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding. Movement speed and drawing speed of cutting machine keep synchronous. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length. Powder & dust suction device can be provided. With different molds, the tilter platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.

Applications:

1.field:outdoor,building,logistic,car,garden,home decoration,

2.product:plank floor,pavilion,chair,door,building template,tray,rail crosstie,fence,courtyard handrail,flower

pot.

3.decoration

4.green environment protection, waterproof, dampproof, anti-corrosion, rot-resistence, ametabolic and

good fire-retardant

5. Dimension(L*W*H):22m*2.5m*2.5m

6.main export place:north America,africa,Europe,southeast asia,south America,etc

7. Available in different colors and wood grain design

8.Material is 100% recycled.

9. Complete process:

Milling → Mixing → Extruding → Mold → Calibrating → Hauling off→ Cutting→

Embossing,polishing,sanding→ Final product

Specifications:

Competitive Advantage:

1.good after-service

2.spare parts are free

3.guarantee:one year or according to customer’s requirement.

4.advanced technology and best quality

5.international certification standard.

6.our engineer help and teach customer to test the machine.
