Product Details:
|
| Plastic Processed: | PVC | Voltage: | 380V/3P/50HZ,600V/3P/60HZ |
|---|---|---|---|
| Type: | Plastic Profile Production Line | Screw Design: | Double Screw |
| Application: | Profile | Place Of Origin: | Shandong , China (Mainland) |
| Condition: | New | Certification: | CE&ISO9001 |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||

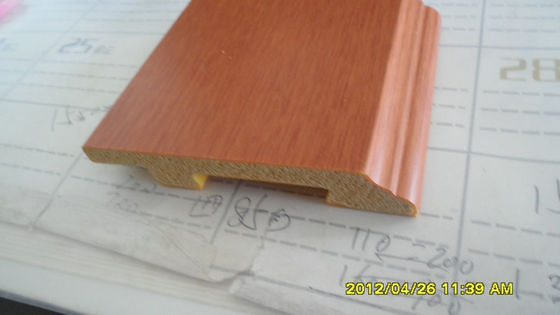

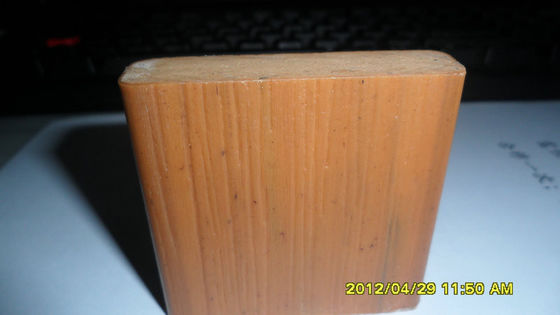

High output PVC Floor and door frame making machine , Double Screw
Quick detail:
Plastic processed: pvc
Type: Plastic profile production line
Screw design: double screw
Certification: CE&ISO9001
Automatic grade: fully automatic
Voltage:380v50hz
Processing Type: extrusion
Description:

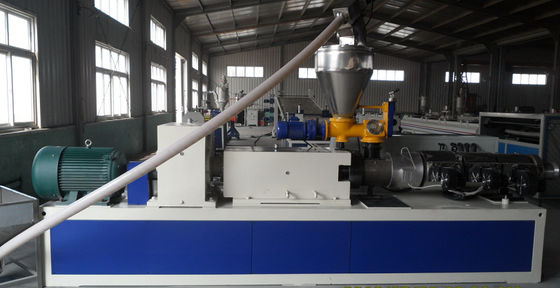

1. This machine uses the special designed screw and barrel , die and extrusion process to produce plastic and wood products , the series of products are: One step thick plastic and wood plate extrusion machine , one step plastic and wood profile extrusion machine , one step plastic and wood decoration plate extrusion machine , plastic and wood pelletizing machine and different kinds of plastic and wood dies.
2. This machine can use the one step extrusion method and also it can use the two-step extrusion method alter pelletizing. The two step extrusion method can save the power and space , and the teo-step extrusion method festures the machine can gain the high output and stable extrusionpressure.
3. A pre-heating feeder is mounted on the top of the extruder which extracts the humidity from the wood powder, so that the feeding section of the extruder can be filled with enough material and the plastification eefect will be better.
4. The screw adopts oil-cooling way, and the barrel is cooled by special air- cooling
system. Good and uniform plasticization, high output, wide applications, stable characters.Special designed reduction box and distribution box,strengthened thrust bearing, big transmission torque, long-life. PLC/PC automatic control adopted by electrical cabinet, temperature controller used by convention equipment. Imported elements, equipped with alarm function, simple operation, easy maintenance,etc.
Applications:
1 ) Indoor Building Profile - Frame, Blinder, Edge Bands, Refrigerator And Window Gaskets, Panels For
Furniture, Kitten Appliances
2 ) Outdoor Building Profile - Picnic Tables, Park Benches, Walkways, Trash Can
3 ) Holders, Playground Structures, Boat Docks And Ramps, Dock Facings And Fenders, Gazebos, Beach
Table, Bench, Trash Can
Main Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 | YF1200 |
| Max width of board(mm) | 180 | 240 | 300 | 600 | 900 | 1200 |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 2 | 2 | 2 | 30 | 40 | 50 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 | 45 |
| Cooling water consume | 6 | 6 | 6 | 9 | 12 | 15 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Competitive Advantage:
1. Good pre-sale and after-sale service
2. CE&ISO9001 certificate
3. Our engineers availiable to go abroad to serive
