Product Details:
|
| Condition: | New | Color: | Blue , Yellow , White , Black |
|---|---|---|---|
| Width: | 5-19mm | Screw Design: | Single Screw |
| Name: | Strapping Band Machine, Strapping Band Making Machine | Weight: | 4T |
| Straps: | 1-6straps | After-sales Service: | Engineers Availiable To Serive |
| Highlight: | Strap Making Machine,Automatic Strapping Machine |
||

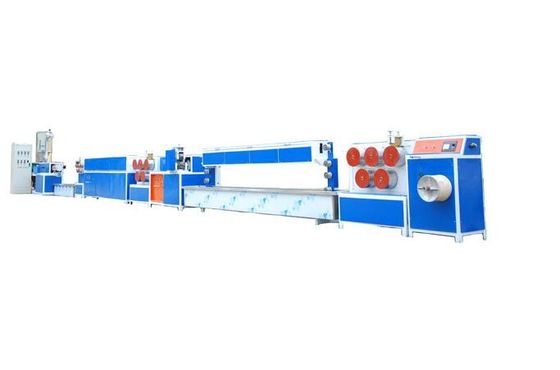

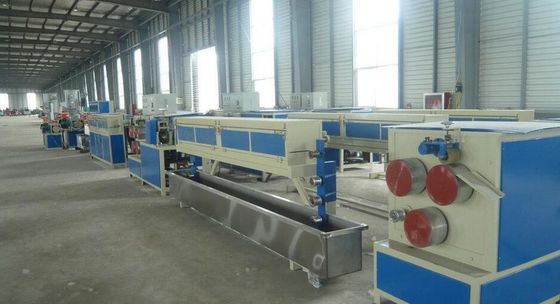

Single Screw pet strapping band production line , Drawbench Making Machine For Packing
1. Single screw or double screw technique for option depending on the requirement.
2. 100% recycled flakes can be used for production.
3. Even plasticzation and stable extrusion with PC automatic control for the full line, the dosing pump ensures continuous and stable production.
4. The filter of dpuble columns with four working positions can get rid of impurity effectively.
5. Single strap or double strap for option.
Description:
1. PET Strapping Band Production line features and technical data: PET strapping band production is designed and developed new type machine by our company the comprehensive study of equipment and scientific, reasonable matching, the production practice of the long-term repeatedly, drawing on the experience of domestic and foreign similar mechanical design strengths, combining. characteristic of plastic products in China. The machine use variable-frequency motor as power resource. The mechanical transmission adopts soft connection. Its rotation is exact and smooth, saving power and low noise.
2. Automatic Tensioning and strap friction welding by button
Light weight for handheld, Easy processing and moving
Suitable for any staff and packaging
Big tension driven by Pneumatic for multi products packing
3. Cakeflour material-recycle→Parrellel Double screw
Pelletizing→solid phase wetness→Melting Extrusion
(Carbonic-acid- beverage bottle piece material)
→Salivate casting piece →1st Stretching→2nd Stretching→intension forming→Rolling and Packing
Technological parameter:
|
Strapping diameter |
6-32mm |
|
Screw diameter |
65 |
|
L/D |
34:1 |
|
Screw material |
38CrMoAlA |
|
Barrel material |
38CrMoAlA |
|
Barrel heating |
Casting aluminum |
|
Barrel cooling |
Water |
|
Driving motor |
37kw |
|
Cooling tank length |
1200mm |
|
Seven Pre-heating roller |
Dia. 215mm |
|
Stretch oven |
Carbon Steel welding |
|
Heating power |
15kw |
|
Five stretch roller |
Dia. 215mm |
|
Three cooling roller |
Dia. 215mm |
|
Calibrating box length |
4000mm |
|
Three roller pulling |
Dia. 215mm |
|

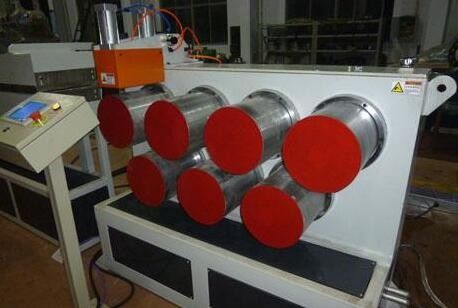

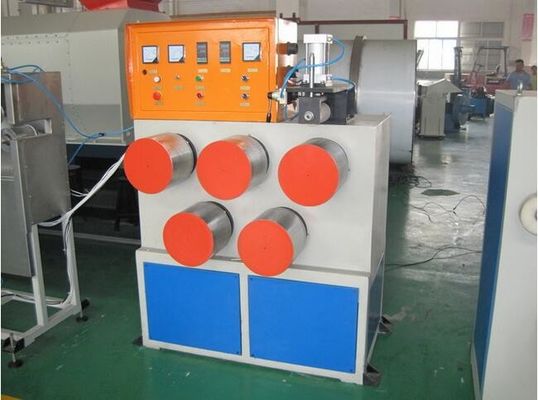

Winding unit |
Automatic winding |
|
Total installation power |
~105kw |
|
Machine dimension |
38000x1300x28000mm |
|
Weight |
18ton |
Application :
Widely used in ceramic,floor board ,floor tile,paper making ,
wooden product ,spinning product, cotton ,nonferrous metal ,
chemical product ,electric power or cable,and tray band of goods,
as a newly rising product.
Competitive Advantage:
1. High quality and reasonable price
2. rich experience
3. good service
