Plastic Profile Extrusion Line
Created with Pixso.

Pvc Celling Pannel Plastic Profile Production Line High performance

Pvc Celling Pannel Plastic Profile Production Line High performance

Brand Name: AORUI
Model Number: SJSZ80/156
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE & ISO9001
Raw Material:
PVC
Automatic Grade:
Fully Automatic
Certificate:
CE & ISO9001
Condition:
New
Voltage:
380V 50HZ
Application:
Profile
Color:
White , Black , Yellow , Blue
Port:
QINGDAO Port
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Plastic Profile Production Line

,

Plastic Profile Extruder

Product Description



Pvc Celling Pannel Plastic Profile Production Line High performance



Quick detail:



1. PVC profile production line can use the one step extrusion method and also it can use the two-step extrusion method alter pelletizing. the two step extrusion method can save the power and space , and the two-step extrusion method features the machine can gain the high output and stable extrusion pressure.



2. pvc profile production line can produce PE , PP or PVC and wood profile products. These products are mainly applied for making pallets , packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max, 50-70%. This machine can produce the PP , PE , PVC , ABS , PS and etc.





Description:



1. The output capacity of main extruder is from 150kg/h to 450kg/h for option. Haul-off machine is specially designed with particular up and down technology of our company, working stable, reliable and heavy duty force. Vacuum sizing tank having particular dig eddy low cooling system for cooling and sizing easy for high speed extruding necessary. The action of cross direction saw cutter keeping synchronous with haul-off controlled by import PLC controller, reasonable design, running stable.

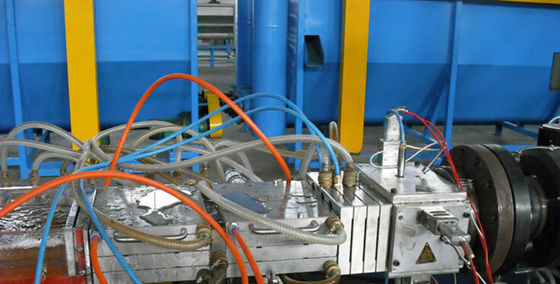

2. The whole PVC imitation marble profile production line consist of conical twin screw extruder , extrusion mold , vacuum calibration mold , caterpillar hauling off machine , automatic cutter , etc . based on near 20 years experience and our customer's feedback , we special design and improve the screw and extrusion mold continuously , make our production line plasticize better , larger output , running stability and easy operation . the spare parts adopt the famous brand , SIEMENS motor and electric parts , ABB converter , etc.





3. The working process of PVC Ceiling Production Line:
Raw material ---- mixing ---- auto feeder ---- plastic extruder ---- mould ----- vacuum forming table ---- haul-off unit ---- auto cutting machine ---- stacker.

Auxiliary equipments are mixer, crusher, pulverizer, air compressor , lamination machine, printing machine and so on.







Applications:



Profiles for the building industry
--windows
--door frame and board
--rolling shutters
--gutters
--fencing
--ceiling
--deck
--floor
Profiles for furnishing
--furniture edge bands
--coatings



Specifications:



item SJSZ51/105 SJSZ65/132 SJSZ80/156 SJSZ92/188
Screw Diameters(mm) 51mm/105mm 65mm/132mm 80mm/156mm 92mm/188mm
Output(kg/h) 80-120 160-200 250-350 400-500
Main driving power(kw) 18.5 37 55 90
Heating Power(kw) 3 Zones,18kw 4 Zones,20kw 5 Zones,38kw 6 Zones,54kw





Competitive Advantage:



1. we have more than 15 years experiences in this field

2. we can invite customers to visit opur factory to see the machine

3. we have technical assistance help customers to know the machine well.

4. high quality and stable operation
