Product Details:
|
| Port: | Qingdao | Place Of Origin: | Shandong , China |
|---|---|---|---|
| Condition: | New | Screw Design: | Double Screw |
| Voltage: | 380v 60HZ | Automatic Grade: | Fully Automatic |
| After-sales Service: | Engineers Availiable To Service | Type: | Profile Extrusion Machine |
| Highlight: | Plastic Profile Production Line,Plastic Profile Extruder |
||

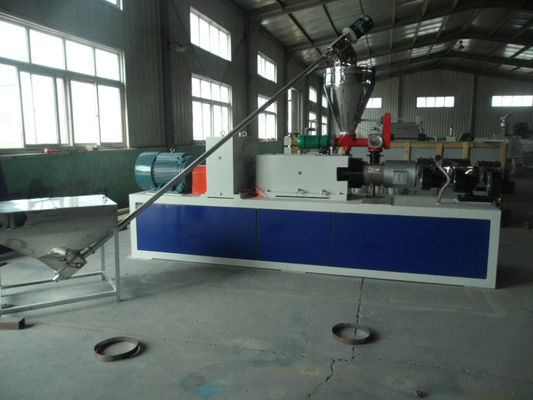

Easy maintenance Plastic Profile Extrusion Line , PVC / WPC Profile Extruder Machine
Quick detail:
1. The machine can produce PE , PP or PVC and wood profile products.These products are mainly applied for making pallets , packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max , 50-75%. This machine can produce the PP , PE , PVC , ABS , PS and etc.
2. WPC profiles production line is the manufacture facilities of PVC plastic profile materiles, including window and door series profile, plate, sheet, foamed profile and foamed ornament plate.
Description:
1. The pvc/wpc profile extrusion machine can use the one step extrusion method and also it can use the two-step extrusion method alter pelletizing. The two-step method can save the power and space , and the two-step extrusion method features the machine can gain the high output and stable extrusion pressure.
2. PVC profile production line consist of Mixer→Spiral loader→SJSZ51;SJSZ65;SJSZ80 double-screw extruder→mould→vacuum calibration spraying platform→haul-off machine→blade cutter→stacker
3. YF Series PVC profiles extrusion line is mainly used in PVC plastic steel doors and windows profile,window panels, perforated pipe threading and foam profile extrusion products. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
Applications:
our wpc wood plastic composite profile extrusion machine, compounding domestic and abroad technology, with characters of high automatic level, steady performance, large output and high efficiency. it is most professional for producing various kinds of wpc profiles both outdoor and indoor by changing different moulds----that means in same extrusion machine line, you can produce different wpc profiles by just changing different moulds!
Specifications:
| Model | YF180 | YF240 |
| Vacuum degree (MPa) | -0.08--0.09 | -0.08--0.09 |
| Center height of T type dies (mm) | 320 | 320 |
| Height from ground to die (mm) | 890-1100 | 890-1100 |
| Moving distance of vacuum calibration table (mm) | 400 | 500 |
| Hauling speed (m/min) | 0.3-7.8 | 0.1-4 |
| Hauling force (KN) | 7.5 | 30 |
| Effective hauling length (mm) | 1.0 | 1.8 |
| Width of rubber (mm) | 180 | 240 |
| Cutting linear velocity (m/s) | 58.6 | 58.6 |
| Max. Cutting section (mm) | 180×65 | 240×65 |
Competitive Advantage:
1. long service life
2. high quality
3. reasonable price
