Product Details:
|
| Type: | Profile Extruder | Life Time: | 30 Years |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Original: | Shandong , China |
| Screw Design: | Double Screw | Warranty: | 1 Year |
| Specification: | According To Model | Port: | QINGDAO Port |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||

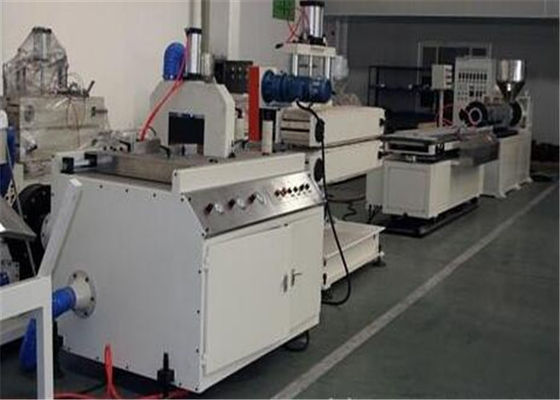

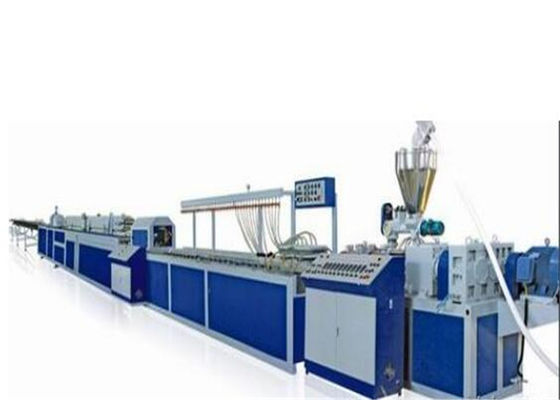

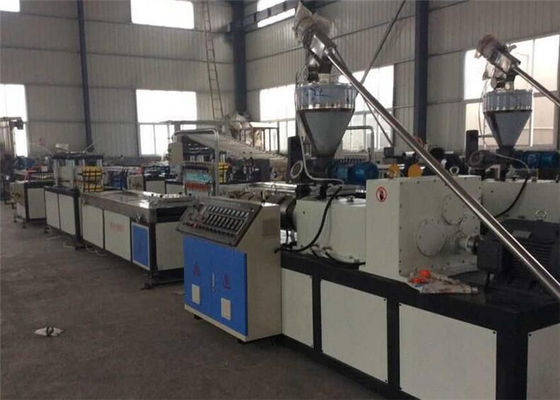

WPC Plastic Profile Extrusion Machine For Windows Production Line
Quick detail:
1. This WPC profile production line uses the special designed screw and barrel , die and extrusion process to produce plastic and wood products, the series of products are: One step thick plastic and plate extrusion machine , one step plastic and wood profile extrusion machine , one step plastic wood and decoration plate extrusion machine , plastic and wood pelletizing machine and different kinds of plastic and wood dies.
2.WPC Introduction:
As a new material to replace wood, wood plastic composite is widely used in fields of building decoration and outdoor building materials, such as edge and corner lines, fence of flowers nursery, skirting board, ceiling line, blind window, stair railing, decorative wall board, outdoor pavilion and so on. Most interior and exterior decorative building materials can be made by using wood plastic composite.
Description:
1. WPC profile extrusion line adpot conical twin screw extruder is a highly efficient agglomeration and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation,even plastication and agglomeration, reliable quality,wide application range and long servicing life.
2. calibrate and cooling in complete vacuum condition. caterpillar hauling machine,automatic length accounting device for precise cutting. non chipping machine ,adopt advanced Germany technology. stainless steel and pneumatic controlled.
3. YF series PVC(WPC) profile production line is suitable for producing PVC(WPC) profile, multi-hole cable duct (4-hole, 6-hole, 7-hole, 9-hole option). According to different profile section and mould to choose different conical or parallel twin-screw extruder and provide relative vacuum sizing tank, haul-off, cross direction saw cutter, stacker auxiliary equipment.
4. Needless granulating of materials, mixed with wood powder, the material can be directly used to extrude wood-plastic profiles.
Suitable material: PE, PP + wood powder, PVC + wood powder
Applicable for producing salver, packaging box board and decorative sheets, etc.
Applications:
The wpc profile extrusion machine can produce PE , PP or PVC and wood profile products. These products are mainly applied for making pallets ,packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max , 50-70%. This machine can produce the PP , PE , PVC , ABS ,PS and etc.
Specifications:
| item | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Screw Diameters(mm) | 51mm/105mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
| Output(kg/h) | 80-120 | 160-200 | 250-350 | 400-500 |
| Main driving power(kw) | 18.5 | 37 | 55 | 90 |
| Heating Power(kw) | 3 Zones,18kw | 4 Zones,20kw | 5 Zones,38kw | 6 Zones,54kw |
Competitive Advantage:
1. our engineers availiable to service
2. good quality and reasonable price
3. the warranty time is 12 months
