Product Details:
|
| Application: | Profile | Place Of Original: | Shandong , China |
|---|---|---|---|
| Screw Design: | Twin Screw | Automatic Grade: | Fully Automatic |
| Service Time: | 30 Years | Port: | QingDao |
| Voltage: | 380V 50HZ | Type: | Plastic Profile Making Machine |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||

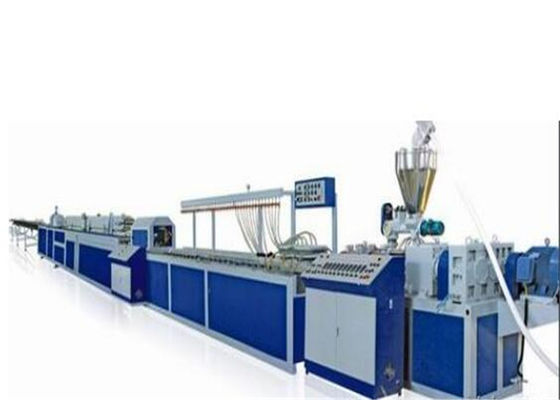

PVC Plastic Profile Production Line , UPVC Profile Extrusion Machine For Windows
Quick detail:
1. PVC profile extrusion machine can produce all kinds of profile, for example, window, door and door frame, pallet, cladding of outdoor wall, faciliry of ourside park, floor etc.
2. Screw is cooled by oil cooling system and the barrel by special air cooling system. good plastification and mixing effect,high capacity, wide range application, high reliability; special design gearbox and distribution box,strengthening the thrust bearing, big transmission torque,long service life.
Description:
1. The pvc profile production line adopts special designed barrel and screw, mould and working crafts to produce wood plastic composite products, simplified as WPC products. The extruder is of two steps mixing extruding or make the wood and plastic into pellets first, then use extruder to process; power and space saving, high capacity,
2. This production line is suitable to produce the PP, PE, PVC + wood composite products, the WPC products are strong and durable, both have the advantages of plastic and wood products, at the same time, they overcomes the shortages of plastic products that is easily got deformed, and the wood products can easily get corrosion, damaged by worms, short service life, etc.
3. Production flow of PVC window door profile:
Material batching mixing_extruding_molding_vacuum calibrating and cooling_hauling_cutting- final PVC profiles.
Applications:
The pvc profile extrusion machine can produce PE , PP or PVC and wood profile products. These products are mainly applied for making pallets ,packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max , 50-70%. This machine can produce the PP , PE , PVC , ABS ,PS and etc.
Specifications:
| item | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Screw Diameters(mm) | 51mm/105mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
| Output(kg/h) | 80-120 | 160-200 | 250-350 | 400-500 |
| Main driving power(kw) | 18.5 | 37 | 55 | 90 |
| Heating Power(kw) | 3 Zones,18kw | 4 Zones,20kw | 5 Zones,38kw | 6 Zones,54kw |
Competitive Advantage:
1. CE & ISO9001 certificate
2. we have good quality and reasonable price
3. easy operate and maintain
4. technical assistance
