Product Details:
|
| Brand Name: | AORUI | Certificate: | CE & ISO9001 |
|---|---|---|---|
| Raw Material: | PVC | Voltage: | 380V 50HZ |
| Autoamtic Grade: | Fully Autoamtic | Condition: | New |
| Place Of Original: | Shandong , China | Dimension(L*H*L)): | According To Model |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||

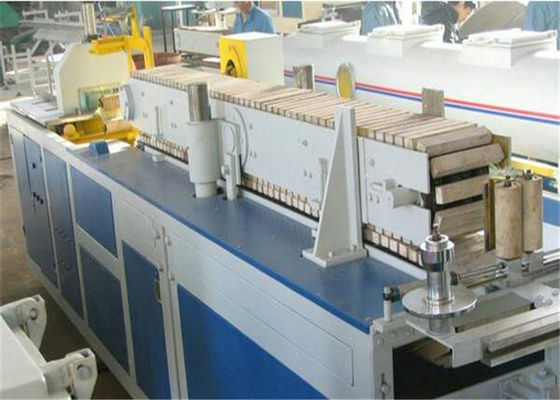

PVC Skirting Board Extrusion Machine , Profile Production Line / Plastic Profiel Extruder
Quick detail:
1. This machine is mainly used to produce PVC window & door profiles, PVC trunking profiles, PVC ceiling profiles, PVC panel, PVC board and so on. This PVC profile production line adopts advanced design concept to ensure the efficient extrusion of PVC material, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
2. Main parts for the whole production line
The whole production line includes the following parts:
1. SRL-Z300/600, SRL-Z200/500 mixing machine
2. Spring Feeder
3. SJSZ-65/132 twin screw extruder
4. PVC profiles moulds 8SETS purchased by buyer
5. Vacuum caliber moulding table
6. Hauling off machine
7. Film glue machine
9. Cutting machine
10. Pile machine
11. Profile crushing machine
12. Vibrate screen
Description:
1. This production is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker. Chang different extruding mould,this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc.
2. To produce PVC profile, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula. Then feed the mixture to the conical twin screw extruder for the production. The mixed material will be extruded through different molds to produce different shape profiles. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut different length as you want, 4 meter, 6 meter, etc.
3. To guarantee the quality and good performance of our machines, we use Siemens Beide brand main motor for extruder, and ABB inverter for speed control. The lower voltage electrics components are from Siemens or Schneider, temperature control device is from Ormon or RKC.
Applications:
The extruder is mainly used for making plastic- stell door and window profile,window boards ,wire casing, skirting
boards,ect.
Specifications:
| item | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Screw Diameters(mm) | 51mm/105mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
| Output(kg/h) | 80-120 | 160-200 | 250-350 | 400-500 |
| Main driving power(kw) | 18.5 | 37 | 55 | 90 |
| Heating Power(kw) | 3 Zones,18kw | 4 Zones,20kw | 5 Zones,38kw | 6 Zones,54kw |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
