Product Details:
|
| Raw Material: | WPC | Plastic Processed: | WPC |
|---|---|---|---|
| Condition: | New | Application: | Template |
| Voltage: | 380V 50HZ | Screw Material: | 38CrMOAIA |
| Control: | Frequency Control | Certificate: | CE & ISO9001 |
| Highlight: | Wood Plastic Extruder,Wood Plastic Composite Extruder |
||
PVC WPC Construction Board Template Extrusion Machine For Furniture
Quick detail:
1. First, This is a completely waterproof material, because it is plastic, it is widely used in the place of the outside balcony, Plank Road, a swimming pool, lake, beach, ship deck and so on.
2. Secondly, this is a completely anti-termite, anti-moth-eaten material, because it does not contain fibrin.
3. Third, this is a material with a good performance of flame retardant. We have done experiments. This excellent fire retardant property of foam boards foam is much better then wood and wood-plastic materials.
4. Fourth, it is one that does not decay, is radiation-free and non-toxic and in line with national testing standards. It is maintenance-free, and the maintenance of pollution can be avoided.
Description:
1. WPC building templates are extruded through high temperature, high pressure and melt based on the material of PVC and wood fiber powder and some chemical auxiliary additives.
Main material;PVC+wood poeder
This products is mainly used for extruding construction template,furniture board.
WPC building templates are very suitable for high-building standard template, shear wall, vertical wall plate, bridge, dam and tunnel templates and so on.

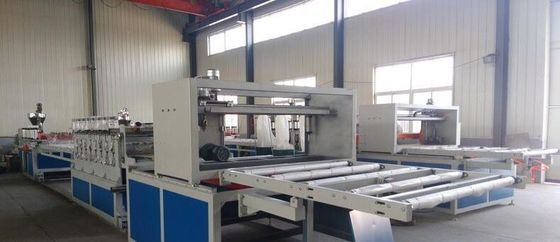

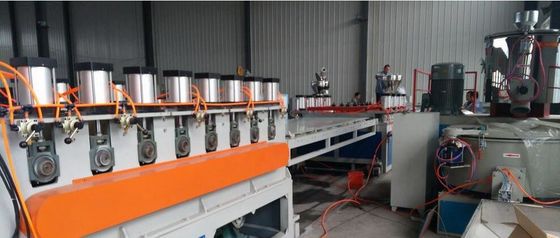

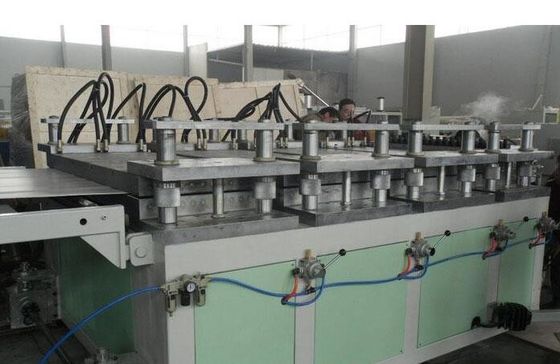

2. This production line composes of conical twin screw extruder, plate dies, forming table, hauler and cutter. The extruder adopts the specially designed screws, improving the integration and plasticizing between PVC and wood powders, and enhances the rigidity of products significantly. The products enjoy a promising future for applications.
Product width 1,220mm
Product thickness 3-30mm
Core layer extruder model SJSZ-80×156
Double layer extruder model SJSZ-65×132
Maximum extrusion output 400Kg/200Kg/h
Main motor power 75KW/37KW
Dimension L × W × H =21m×4m×2.6m
Weight 30T
Installed capacity 220KW/h
Specifications:
| Model | JG-MSC80/156 | JG-MSC80/156-FH | ||
| Screw dia. | mm | Ø80/Ø156 | Ø80/Ø156 | Ø65/Ø132 |
| Screw quantity | piece | 2 | 2 | 2 |
| Screw speed | r/min | 1-37.7 | 1-37.7 | 1-39.1 |
| Main extruder power | KW | 75 | 75 | 37 |
| Heating power | KW | 36 | 36 | 24 |
| Extrusion output | kg/h | 150-350 | 250-450 | 250-450 |
| Model | BF600 | BF1220 | ||
| Max. product width | mm | 600 | 1220 | |
| Draw-off height | mm | 150 | 150 | |
| Draw-off force | KN | 50 | 50 | |
| Draw-off speed | m/s | 0-3 | 0-2.5 | |
| Total power of auxiliary machine | KW | 35 | 40 | |
| Cooling water consunmption | m3/h | 9 | 12 | |
Competitive Advantage:
1. good after-service , engineers can availiable go abroad to serive.
2. spare parts are free
3. guarantee:one year or according to customer’s requirement.
4. advanced technology and best quality
5. international certification standard.
6. our engineer help and teach customer to test the machine.
