Product Details:
|
| Brand Name: | AORUI | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Voltage: | 380V 50HZ | Place Of Origin: | Shandong , China |
| Nitrided Layer Thickness: | 0.4-0.7 | Payment Terms: | TT Or L/C |
| Certificate: | CE & ISO9001 | Condition: | New |
| High Light: | Wood Plastic Extruder,Wood Plastic Composite Extruder |
||

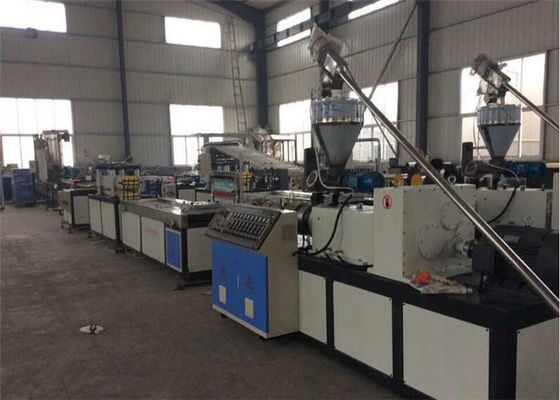

wpc Plastic Board Extrusion Machine , WPC Foam Board Production Line With Two Screw
Quick detail:
1. WPC Furniture/ Construction Template Board Extrusion machineadopts WPC sepcialized twin/single screw extruder, and it can be equipped with auxiliary machines like corresponding vacuum forming table, haul-off, transverse cutter and stirring up platform.
2. SJSZ conical twin screw extruder is a highly efficient agglomeration and extruding equipment.Machines of this series feature low shearing rate, uneasy degradation,even plastication and agglomeration, reliable quality,wide application range and long servicing life.Using PE powder as raw material for a direct forming, the exturders perform an excellent effectiveness.These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced and self-cleaning mechanism.
Description:
Milling →Mixing → Granulating → (Extruding → Mold → Product → Calibrating → Hauling off→ Cutting off) → Embossing or polishing→ Final product
Standard board size is 1220mm*2440mm (48"*96");
Thickness: 10mm (3/8"), 12mm, 13mm (1/2"),15mm, 16mm (5/8"), 18mm, 19mm (3/4"), 20mm, 24mm, 25mm, 25.4mm (1");
Densities from 0.52-0.60g/cm3;
Surface: smooth/smooth or smooth/wood grain pattern(timber ridge) finish;
Colours: available in White.
Excellent Features:
Strong and durable; Lightweight and easy to install; Not easy to scratch;
Will not rot, warp, delaminate, cup or twist;
Resistant to weather, shock and abrasion;
Salt water corrosion resistant;
Impervious to salts, insects and many chemicals, including some acids;
Doesn't mold; Can be worked just like wood;
Non-toxic; 100% recyclable; Fire-retardant (self-extinguishing);
Easy to clean; Virtually maintenance free;
Specifications:
| Model | JG-MSC80/156 | JG-MSC80/156-FH | ||
| Screw dia. | mm | Ø80/Ø156 | Ø80/Ø156 | Ø65/Ø132 |
| Screw quantity | piece | 2 | 2 | 2 |
| Screw speed | r/min | 1-37.7 | 1-37.7 | 1-39.1 |
| Main extruder power | KW | 75 | 75 | 37 |
| Heating power | KW | 36 | 36 | 24 |
| Extrusion output | kg/h | 150-350 | 250-450 | 250-450 |
| Model | BF600 | BF1220 | ||
| Max. product width | mm | 600 | 1220 | |
| Draw-off height | mm | 150 | 150 | |
| Draw-off force | KN | 50 | 50 | |
| Draw-off speed | m/s | 0-3 | 0-2.5 | |
| Total power of auxiliary machine | KW | 35 | 40 | |
| Cooling water consunmption | m3/h | 9 | 12 | |
Application:
1. It use for many fields. Such as: transport industry,architecture decoration industry,advertisement industry,other application. usually using for Kitchen door.Transport industry: ship, plane, bus, train, floor covering, core layer, indoors decoration plate.
2. Architecture decoration industry: outdoors decoration plate, residential house, office, separation of public building, commercial decoration frame, plate used in dust-free room, ceiling plate.
Advertisement industry: screen printing, computer engraving advertisement board,exhibition plate, logo plate.
3. Industrial application: rot proof project in chemical industry, thermal shaped part, plate for refrigeratory warehouse, special cool-keeping project, environmental protection plate.
Competitive Advantage:
1. Good quality and reasonable price
2. Engineers availiable to service
3. Good pre-sale and after-sale service
4. CE & ISO9001 xertificate
