Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

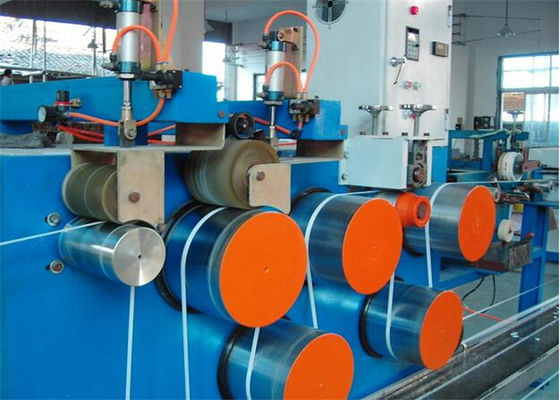

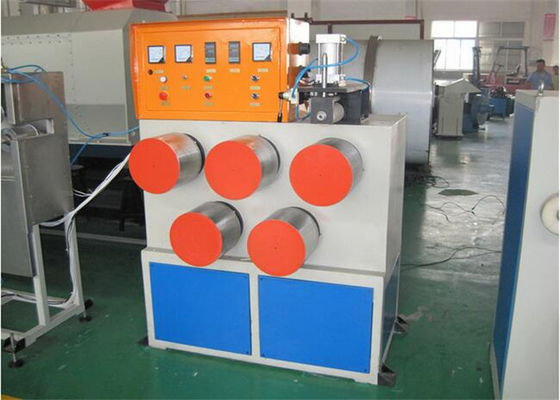

Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder

Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder
Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder

Large Image :  Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ-45/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder

Description
Condition: New Screw Design: Single Screw
Material: PET Recycled Flakes Original: Shandong , China
Port: Qingdao Certificate: CE & ISO9001
Model Number: SJ45/33 Warranty: 12 Months
High Light:

Strap Making Machine

,

Automatic Strapping Machine

Fully Automatic PET Strapping Band Production Line , Strapping Band Extruder




Quick detail:



1. Single screw or twin screw technique for option depending on the requirement. 100% recycled flakes can be used for production.



2. Even plasticization and stable extrusion with PLC automatic control for the full line. As per different requirements, changing A coating materials for make strap have better and special function. For example, the strap for packing cotton, can be from enhancing the breaking strength and joint strength when welding strap.





Description:

1. Using the recycling bottle slices as raw materials by making them melt directly,which reduces the course of raw material-making. The products has the same transparency as made from new polyester slices, butthe tensile strength and shock resistance are stronger.



2. The dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectively. Sngle strp or double strap for option.





Technological parameter:



Strapping diameter

6-32mm

Screw diameter

65

L/D

34:1

Screw material

38CrMoAlA

Barrel material

38CrMoAlA

Barrel heating

Casting aluminum

Barrel cooling

Water

Driving motor

37kw

Cooling tank length

1200mm

Seven Pre-heating roller

Dia. 215mm

Stretch oven

Carbon Steel welding

Heating power

15kw

Five stretch roller

Dia. 215mm

Three cooling roller

Dia. 215mm

 Calibrating box length

4000mm

 Three roller pulling

Dia. 215mm

Winding unit

Automatic winding

Total installation power

~105kw

Machine dimension

38000x1300x28000mm

Weight

18ton



Application :

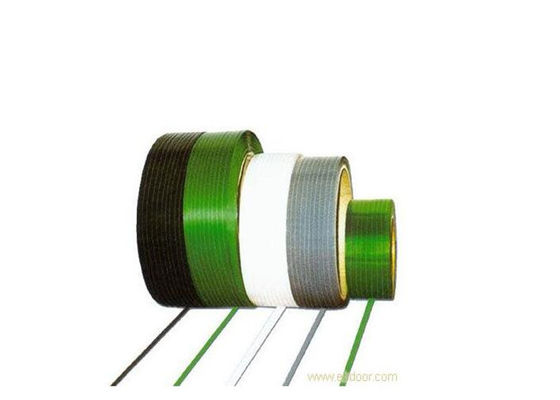

PET/PP strap is known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; is replaced by a new high-strength steel strapping, is the worlds most widely used for steel products.



Competitive Advantage:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
