Brand Name: | AORUI |
Model Number: | SJ-65/33 |
MOQ: | One set |
Price: | Negotiable |
Payment Terms: | T/T L/C |
Supply Ability: | 10 Sets per month |

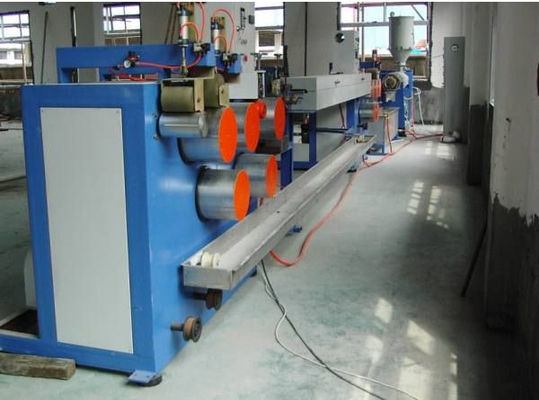

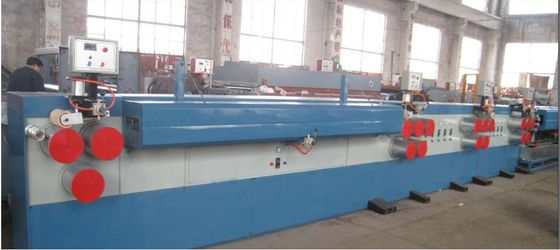

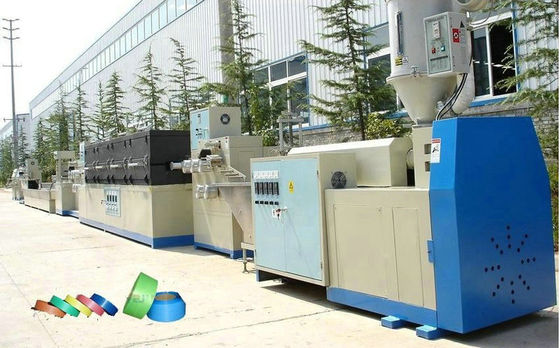

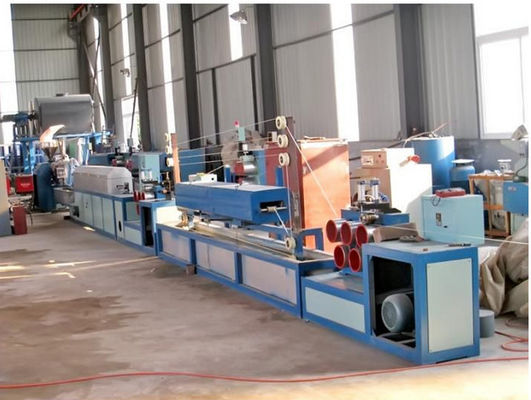

PP / PET Strapping Band Making Machine / Strppping Band Production Line For package
Quick detail:
1. Production can use 100% recycled material to obtain a high add value commodity like strapping band.
PC manages automatically the extruder's working parameters in according with the running condition; Material treatment, extrusion, stretching, annealing and taking up units are all synced with the PC.
2. PET or PP straps can be produced with the same technology, to change line set-up from one to the other only take in few minutes.
High-advanced ABA co-extrusion technology, not only improve strap's tensile strength but also help the peel strength after welding.
Double column 4 positioned filter chambers, 100% full automatic self-cleaning screen changer, working non-stop during screen changing, it ensures the straps quality is not affected throughout the production.
Description:
1. PET strapping band production is designed and developed new type machine by our company the comprehensive study of equipment and scientific, reasonable matching, the production practice of the long-term repeatedly, drawing on the experience of domestic and foreign similar mechanical design strengths, combining. characteristic of plastic products in China. The machine use variable-frequency motor as power resource. The mechanical transmission adopts soft connection. Its rotation is exact and smooth, saving power and low noise.
2. PET strapping band production line consists:
1. SHR-1500 Crystallizing and Drying and I. V increasing unit
2. Twin screw extruder
3. Screen changer
4. Gear pump
5. Mould
6. Water cooling tank
7. Pre-heating unit No. 1
8. Stretching oven
9. Stretching unit No. 1
10. Stretching unit No. 2
11. Embossing unit
12. Fixing unit
13.3-roller hauling off
14. Winder
Technological parameter:
Strapping diameter |
6-32mm |
Screw diameter |
65 |
L/D |
34:1 |
Screw material |
38CrMoAlA |
Barrel material |
38CrMoAlA |
Barrel heating |
Casting aluminum |
Barrel cooling |
Water |
Driving motor |
37kw |
Cooling tank length |
1200mm |
Seven Pre-heating roller |
Dia. 215mm |
Stretch oven |
Carbon Steel welding |
Heating power |
15kw |
Five stretch roller |
Dia. 215mm |
Three cooling roller |
Dia. 215mm |
Calibrating box length |
4000mm |
Three roller pulling |
Dia. 215mm |
Winding unit |
Automatic winding |
Total installation power |
~105kw |
Machine dimension |
38000x1300x28000mm |
Weight |
18ton |
Application :
Application: PET straps for cotton bales, for Can Package, for Paper Industry, for strapping Steel Coils, for Clay Building Bricks, for Aluminum Ingots, for Fibre Bales, etc.
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
