CE Plastic Profile Extrusion Line for PVC Plastic And Wood Foamed Profile And Plate

CE Plastic Profile Extrusion Line for PVC Plastic And Wood Foamed Profile And Plate

Brand Name: AORUI
Model Number: SJSZ80/156
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE & ISO9001
Screw Design:
Double Screw
Customized:
Customized
Machine Color:
Bule White Black Or According To Customer's Requirement
Raw Material:
PVC
Voltage:
380V 50HZ
Condition:
New
Certificate:
CE & ISO9001
Port:
QingDao
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Plastic Profile Production Line

,

Plastic Profile Extruder

Product Description

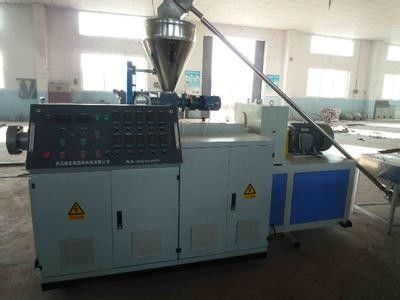

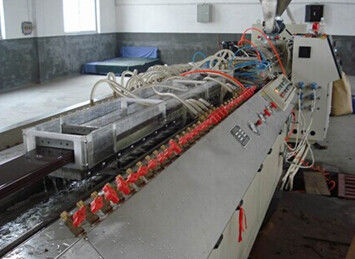

Plastic Profile Extrusion Machine , PVC Plastic And Wood Foamed Profile And Plate Extrusion Line





Quick detail:



Machine Introduction






Certificate: CE, ISO9001:2008, SGS,
Brand Name: AORUI
This line is used to produce PVC profile, window profile, wood-plastic profile, wall panel, ceiling panel, etc.

It needs twin screw extruder with power material.
Raw material is PVC power, or with wood power and additives.





Description:



1. The series of pvc profiles are: One step thick plastic and wood plate extrusion machine , one step plastic and wood profile extrusion machine , one step plastic and wood decoration plate extrusion machine , plastic and wood pelletizing machine and different kinds of plastic and wood dies.



2. Plastic Profile Production Process Flow


Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.



3. Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.



Applications:



The pvc profile  production line is suitable to produce the PP, PE, PVC + wood composite products, the WPC products are strong and durable, both have the advantages of plastic and wood products, at the same time, they overcomes the shortages of plastic products that is easily got deformed, and the wood products can easily get corrosion, damaged by worms, short service life, etc. They are popularly used as packing case and wood-polymer tray; flooring panel, indoor and outdoor decoration, plank flooring, pavilion and chair in park, etc. The amount of wood power or fibers can reach to 50-70%.





Specifications:



Model SJZ51/105 SJZ55/100 SJZ65/132 SJZ80/156 SJZ92/188
Screw diameter(mm) 51/105 55/100 65/132 80/156 92/188
Quantity of screw 2 2 2 2 2
Max. rotation speed of screw(r/min) 40 38 38 37 36
Effective length of screw(mm) 1200 1200 1440 1800 2500
Main motor power(kw) 18.5 22 37 55 110
Productuion capacity(kg/h) 100 150 250 400 750
Center height(mm) 1000 1000 1000 1100 1200





Competitive Advantage:



24 hours services;



Overseas installation;



Free operation training and technology formula transfer;



Old machine update;



Spare parts and maintenance with reasonable cost price.
