Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Screw Number: | One | Automatic Grade: | Fully Automatic |
| Certificate: | CE & ISO9001 | Voltage: | 380v50hz |
| Application: | Plastic Sheet | ||
| High Light: | plastic sheet extrusion machine,plastic sheet production line |
||

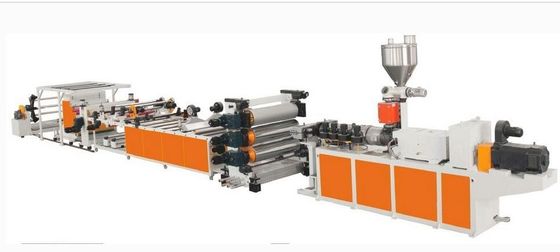

High Quality PP PE PS Sheet Making Machine , Plastic Sheet Production Line
QUICK DEATIL :
1. pp pe abs plastic sheet extrusion line is the production line of the most advanced technology, most mature crafts and one of the most stable machines, its comprehensive capacity is 30% higher than the domestic similar equipment. The production line is used to produce PS, PP, PE etc. sheet products.
2. The PET crystallization and drying system has absorbed the most advanced international technology, has the advantages of low dew point, low energy consumption, this highly enhance the performance of the complete production line.
Description:
1. The production line can produce light sheet such as light guide plate (LGP), lightfiled diffuser, brightness enhancement film (BEF) and reflective film. LED illumination special light guide plate, is applied for panel lights, tube light, advertisement light box, indication plate and so on. LCD display special light guide plate, is applied for LED TV, tablet personal computer, laptop, mobile phone and so on.

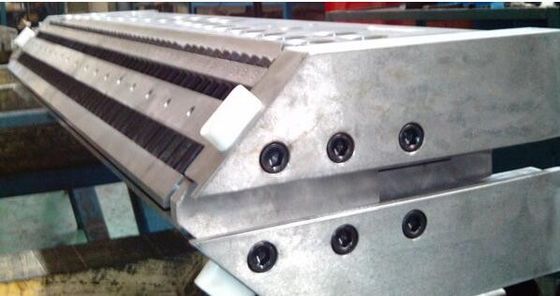

2. The line is designed for pp.pe.pvc,ps,abs board&sheet&plate production line with different specifications. Special T-type die ensure the precise control of thickness of the plastic sheet/board.
Precise temperature control(±1°c) can pecisely control the plastiication process and ensure precise thickness and flatness of the products.
3. The thickness of the sheet is precisely adjusted by adjusting the screws and oil pessure wheels.
The calender can freely rise and fall. Unattached rooll temperature control system can precisely cotrol the temperature of the roll.
Applications:
Specifications:
|
Model |
Extruder |
Width |
Thickness |
Capacity |
|
XD1220 |
SJSZ80/156 |
1220mm |
<30mm |
350KG |
|
XD1830 |
SJSZ92/188 |
1830mm |
<30mm |
<800KG |
Competitive Advantage:
1. We have more than 15 years professional experience
2. International CE ISO9001 certificate
3. National high-tech enterprise/products
4. we can invite customers to visit our factory , can see the machine and test the machine , if client need, our engineers can go to the client's factory to install the machine, and trainning the local workers to operate the machine.
