Brand Name: | AORUI |
Model Number: | SJ65/33 |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | T/T L/C |
Supply Ability: | 30 sets per quarter |

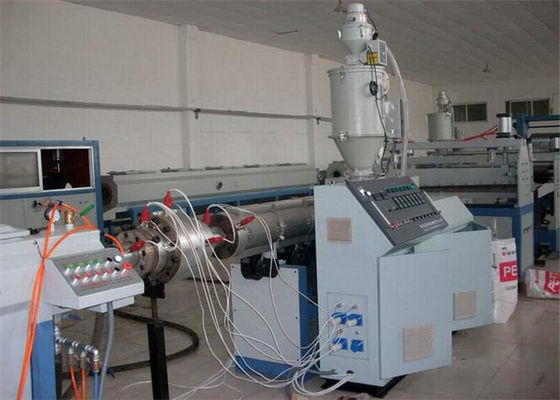

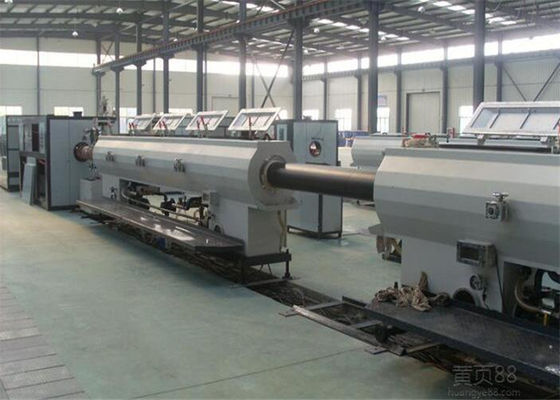

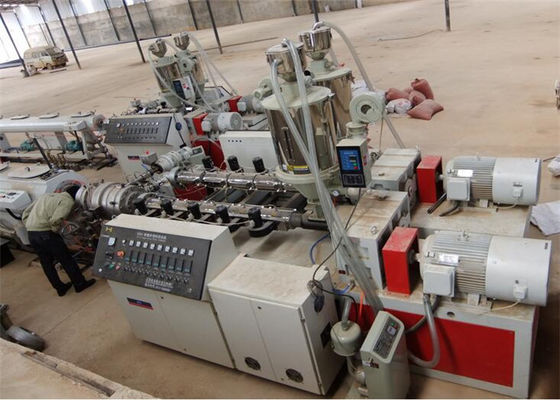

Plastic Extrusing Machine PE PP PERT Water Pipe Production Line
Quick detail
1. PE series palstic pipe production line is mainly used for producing pipe of water supply and drainage in the field of agriculture and contruction, cable etc.
Specifications Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption
Description:
1. High speed, big capacity and low power consumption the fastest lineal speed up to 35m/min and power saving 30%.
2. Achieved co-extrusion with 1-5 layers and one mould with several output.
3. High speed calibration and good cooling effect with spiral mould structure design and special pipe inner cooling system.
4. High speed material feeding with special spiral groove feeding design and outside water jacket cooling.
5. Excellent shearing, mixing and stable extrusion with professional barrier type screw, creative shearing and mixing design.
Application:
This machine line is suitable for the plastic Pipe making purpose, especially for the PP/PE/PVC and so on.
Main Technical Parameters
Model | PE-16/63 |
PE-20/110 |
PE-50/160 |
PE-75/250 |
PE-110/315 |
PE-200/450 |
PE-315/630 |
PE-400/800 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
315-630mm |
400-800mm |
Max output |
150kg/h |
200kg/h |
300kg/h |
350kg/h |
400kg/h |
500kg/h |
850kg/h |
850kg/h |
Extrusion speed |
1-15m/min |
1.2-12m/min |
0.6-8m/min |
0.5-4m/min |
0.4-3.7m/min |
0.3-3m/min |
0.2-2m/min |
0.1-1 m/min |
Extruder model |
SJ-65/30 |
SJ-65/33 |
SJ-75/33 |
SJ-75/33 |
SJ-75/33 |
SJ-90/33 |
SJ-120/33 |
SJ-120/33 |
Installed power |
85kw |
110kw |
125kw |
180kw |
260kw |
325kw |
480kw |
600kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
1200mm |
1300mm |
Line length |
35m |
38m |
38m |
40m |
42m |
52 m |
60m |
68m |
