PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line

PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line
PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line

Large Image :  PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line

Description
Automatic Grade: Fully Automatic Model Number: SJ120/33
Weight: 6000kg Motor: Simens
Brand Name: AORUI Certifcate: CE & ISO9001
Delivery Time: About 35 Days Screw Design: Single Screw
High Light:

Plastic Granulating Machine

,

Plastic Recycling Machine

PE Pressure Pipe Pipe Making Machine , Larger Diameter PE Pipe Extrusion Line



Quick detail



1. The features of our pe pipe machine: High efficiency single screw extruder. It can produce hdpe water/gas pipes. The pipe diameter range:20-630mm or customes request. This hdpe hoes is mostly used as city water and gas supply system and so on.

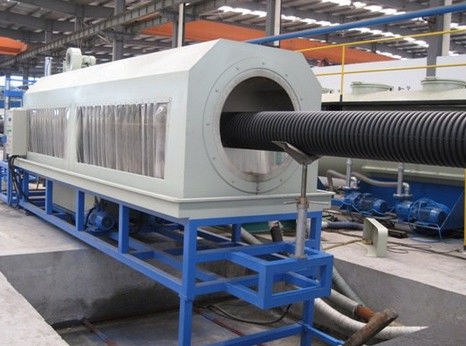

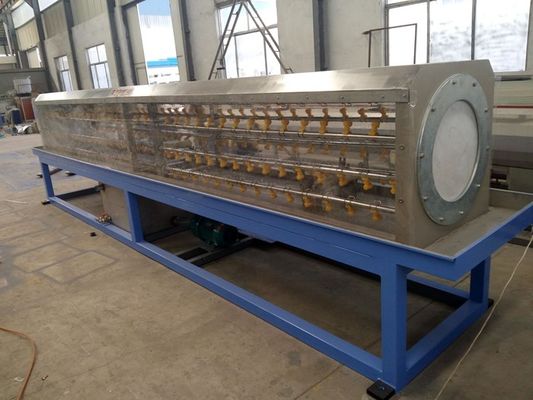

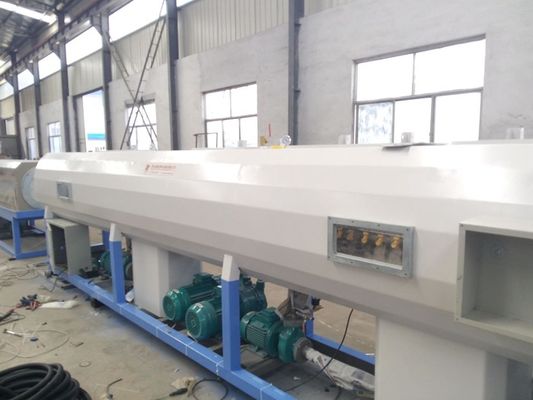

2. Main components of pe pipe production line: a. SJ120/33 single screw extruder b. Die and mould c. vacuum calibration device d. vacuum spary water tank e. hauling off machine f.cutting machine e.stackers.





Description:



1. Special single screw extruder for polyofin , having high extruding velocity and effective plasticzation. Separation mixing screw specialized for polyolefin. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.



2. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE sillicon core tube , ordinary PP-R , PE , PE . PEX and PE-RT pipes.

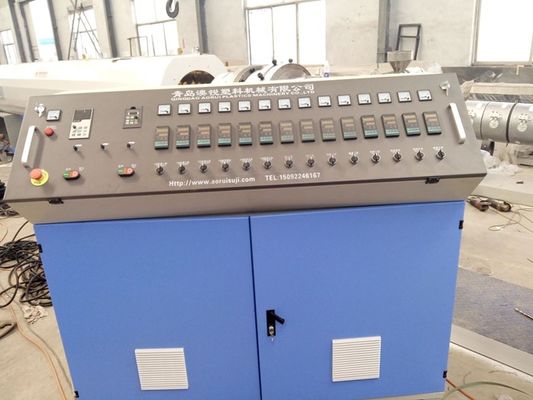

3. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand. The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. You may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device. The equipment is with the reliable performance and high production efficiency.





Application:





  The production line is mainly used to manufacture for PE plastic pipe, and GF serirs tube auxiliary equipment production line can also be used to produce other plastic, Extruder and GF series tube auxiliary equipments production line take the features of advantages ,reliability and applicability together, and provide strong certification for high-quality plastic tube for customers.







Main Technical Parameters





Model
PE-16/63

PE-20/110

PE-50/160

PE-75/250

PE-110/315

PE-200/450

PE-315/630

PE-400/800

Pipe diameter

16-63mm

20-110mm

50-160mm

75-250mm

110-315mm

200-450mm

315-630mm

400-800mm

Max output

150kg/h

200kg/h

300kg/h

350kg/h

400kg/h

500kg/h

850kg/h

850kg/h

Extrusion speed

1-15m/min

1.2-12m/min

0.6-8m/min

0.5-4m/min

0.4-3.7m/min

0.3-3m/min

0.2-2m/min

0.1-1 m/min

Extruder model

SJ-65/30

SJ-65/33

SJ-75/33

SJ-75/33

SJ-75/33

SJ-90/33

SJ-120/33

SJ-120/33

Installed power

85kw

110kw

125kw

180kw

260kw

325kw

480kw

600kw

Center height

1000mm

1000mm

1000mm

1000mm

1100mm

1100mm

1200mm

1300mm

Line length

35m

38m

38m

40m

42m

52 m

60m

68m





Our comapny competitive:



  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.
