Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine

Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine
Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine

Large Image :  Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine

Description
Model Number: SJ65/33 Payment Terms: TT L/C
Condition: New Certification: CE ISO9001
Frequency Control: Abb Brand Name: AORUI
Screw Number: ONE Delivery Time: 35days
High Light:

WPC Extrusion Line

,

Plastic Recycling Machine

Hot Sale PE Corrugated Pipe Production Line , China Corrugated Pipe Making Machine



Quick detail

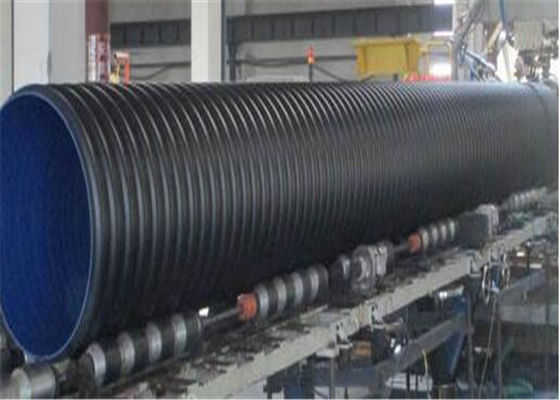

   All kinds of pipe and pipe fittings with hot wall winding structure, pipe fittings because of its reliable connection performance that can be used for advance shallow drainage system, the drainage system will discharge the liquid and gas material into the rivers or sea. The winding reinforced pipe has light weight, which is safe, reliable connection, high corrosion resistance and high ring stiffness rate, by using winding reinforced pipe has a great advantage.


Description:



1. Finished pipes produced by our line have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine, etc.



2. This machine is mainly used to produce pvc,pp,pe single wall corrugated pipes, PVC, PP,PEelectric corrugated hose etc. This PVC/PP/PE corrugated pipe making machine adopts advanced design concept to ensure the efficient extrusion, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.


3. Equipment list of PVC/PP/PE corrugated pipe making machine

Compulsory devices
1 Material charge 1 set
2 Single screw extruer 1 set
3 die head 5-100mm

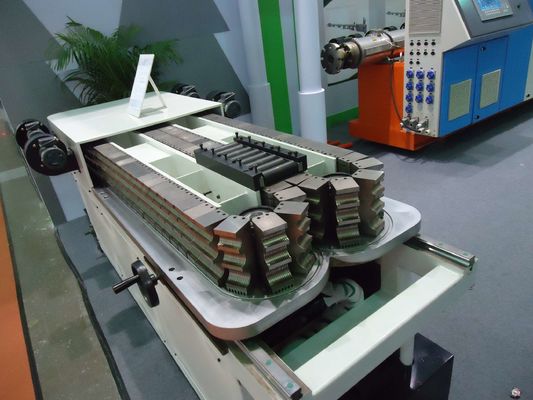

4 forming machine with forming block 1 size need one set block
5 coiler single/double plate coiler
6 Electrical cabinet(ABB, Omron, RKC, Schneider etc) 1 set
7 Spare parts 1 set













Main Technical Parameter



Technical Parameter of PE/PP/PVC Single Wall Corrugated Pipe Machine:






Pipe diameter(mm)

4.5-9

9-32

16-50

Extruder model

SJ-30

SJ-50

SJ-65

Screw L/D

30:1

30:1

30:1

Output kg/h

10

30

50

Extruder motor

4

15

18.5

Corrugators power kw

1.1

1.5

2.2

Moulds pairs

42

38,50

50

Cooling mode

Water Cooling and fan cooling

Extruding speed(m/min )

6-10

8-12

8-12

Account number mode

Inducting speed

Winding pipe mode

Automatic winding and manually









Application:



1. This machine can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA.



2. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...

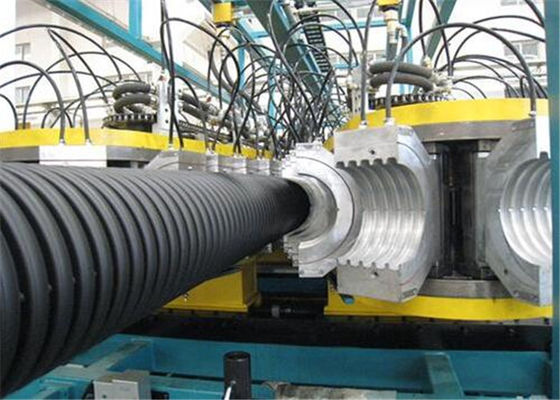

3. Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.





Our competetive advantages:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.



Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine 0Fully Automatic PE Corrugated Pipe Production Line Corrugated Pipe Making Machine 1
