Plastic Board Extrusion Line
Created with Pixso.

PVC WPC Board Production Line , PVC Semi - skinny Foam Board Making Machine

PVC WPC Board Production Line , PVC Semi - skinny Foam Board Making Machine

Brand Name: AORUI
Model Number: SJSZ80/156,SJSZ92/188
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA
Raw Material:
PVC
Brand Name:
AORUI
Automatic Grade:
Fully Automatic
Place Of Original:
Shandong , China
Voltage:
380V 50HZ
Delivery Time:
About 35 Days
Warranty:
12 Months
Certificate:
CE & ISO9001
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Board Production Line

,

Panel Production Line

Product Description

PVC WPC Board Production Line , PVC Semi-skinny Foam Board Making Machine





Quick detail:

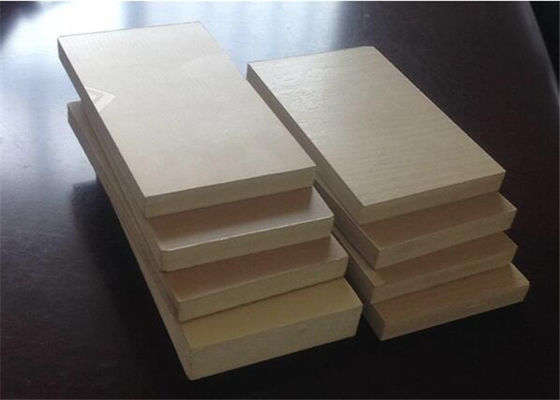

1. The pvc board has such characteristics as high impact resistance , high rot resistance , high temperature resistance , non-toxic , smooth surface , light , easy to thermform , etc.



2. This production line is bringing in the international advanced technology. It adopts high-efficiency conical double-screw extruder to extrude and vacuum form. It can produce PVC door and window profile, elbowboard, the hanging panel for outside wall, decoration panel, multi-hole wirethrough pipe and other profile. It has been widely used in fields of PVC plastic door and window, construction, decoration, etc.





Description:



1. Application: such as wire plate , environment protection material , venting equipment , semiconductor equipment , etc.



2. This production line adopts PVC raw materials and waste material and wood powder, calcium carbonate and other filler extrusion production process of formwork is a new type of template to replace steel templates and bamboo plywood.



3. Its advantages are: green environmental protection, anti-corrosion, moisture-proof, moth, easy to deformation, and wood with the same processing conditions, can be recycled, and has very broad application prospects. Low cost, light weight, continuous Use the number as high as thirty times, waste can smash again by many of the advantages of.PVC wood skin node features foam board is the biggest source of cheap raw materials, is widely used.

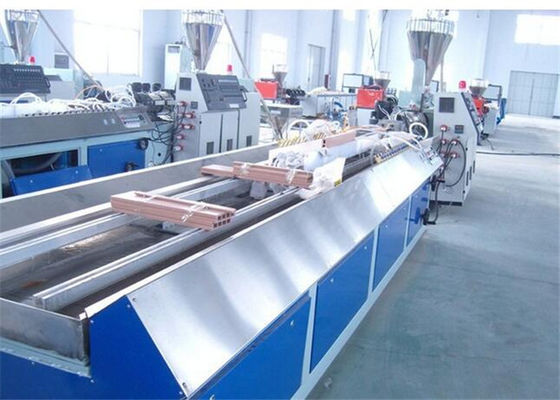

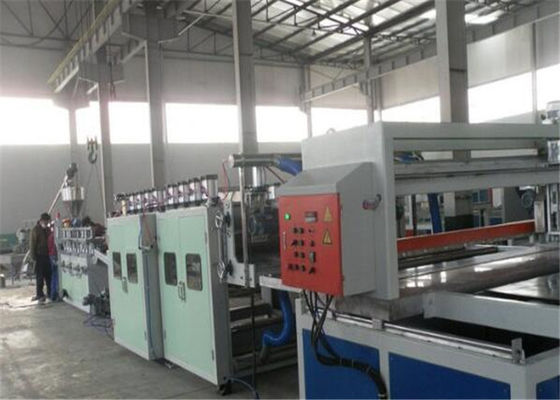

The plastic board production line includes the below machines;

1. Plastic Extruder

2. Extrusion Mold ( The buyer shall prepare the drawing to make the mold)

3. Vacuum Calibration Table

4. Haul Off and Cutter

5. Stacker

6. PVC Mixer ( for raw material preparation)

7. Crusher and Milling Machine ( for recycle the waste and could reuse for profile production)







Applications:



This line is used for production PVC decoration material with different shape and size for different application (Including PVC plastic doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates, etc)







Main technical parameters:



Model SJZ-180 SJZ-240 SJZ-300 SJZ-350 SJZ-400 SJZ-600 SJZ-800 SJZ-1000

Max. width of products

(mm)

180 240 300 350 400 600 800 1000
Main extruder SJZ51/105 SJZ65/132 SJZ65/132 SJZ65/132 SJZ80/156 SJZ80/156 SJZ80/156 SJZ92/188
Extrusion capacity(kg/h) 150 250 250 250 350 400 400 600
Main motor power (kw) 18.5 37 37 37 55 55 55 110





Competitive Advantage:



1.good after-service

2.spare parts are free

3.guarantee:one year or according to customer’s requirement.

4.advanced technology and best quality

5.international certification standard.

6.our engineer help and teach customer to test the machine.

PVC WPC Board Production Line , PVC Semi - skinny Foam Board Making Machine 0
