Brand Name: | AORUI |
Model Number: | SJSZ80/156 |
MOQ: | One set |
Price: | Negotiable |
Payment Terms: | T/T L/C |
Supply Ability: | 10 Sets per month |
2017 New PVC Plastic Board Extruder , PVC Foam Board Production Line
Quick detail:
Plastic sheet extrusion line
Main applications:
1. Plastic sheet extrusion line can produce Plastic Single Layer, Multi-Layers Composite Sheet
2. Plastic sheet extrusion line can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.
3. Plastic sheet extrusion line is used for packing, printing, stationery, art works, etc. Main product: Gift/ad/file bag, lamp cover, food packing, etc.
4. Plastic sheet extrusion line: Thickness 0.2-2mm width 700-1500mm
5. Plastic sheet extrusion line contains: Extruder, Screen exchanger, Mould, Three-roller calender, Temperature controller, Cooling carrier frame, Haul-off, Cutter/Winder.
6. Optional device of Plastic sheet extrusion line: Hydraulic measuring pump, laminator.

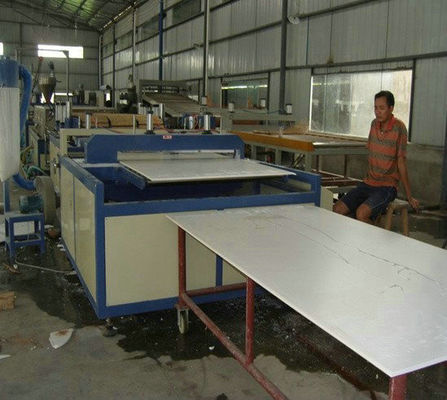

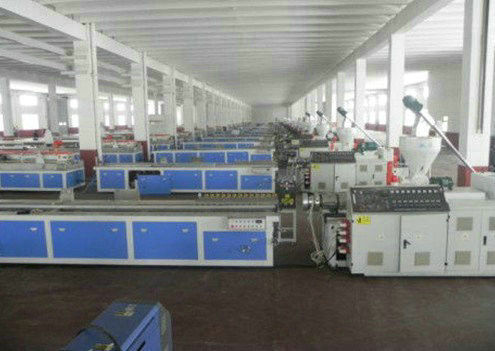

Picture for reference
Description:
1. PVC Foam Board Line details
Suitable for raw material: PVC
Suitable for sheet size 1220 X 3-20mm
Center height of line: 1200mm
Compressed air capacity: 3.0 m3/min (>0.5MPa)
Driving power supply: 3 phase 380V (±10%) 50Hz
Assembly total power: 195Kw
Production line overall dimension: 18000×1700×2300mm
2. 1. Extruder adopts cast-aluminium heating circles, high quality thermo-controllers, air blowers for cooling, AC/DC inverter and screw core oil circulation cooling.
2. Calibrating tables adopts special cooling system, which can guarantee the effective cooling.
3.Haul off machine adopts special lifting technology, which works stably with powerful hauling force.
4.Cutting machine works together with extrusion line synchronously, installed with length-setting unit, which can guarantee high speed cutting, uniform length of cutting.
5.Other accessory machines: high speed hot and cold mixer, plastic crusher, plastic pulverizer
Application of PVC Hard-surface Foam Board Production Line making machine
1. Advertisement; Signage; POP; Cupboard (kitchen); Furniture board like table , desk, under the sun table.
2. Marine (seating, covers, shelving, cabinets, stairs, electronics & wall panels, door etc. ); Water park; Seashore wet-proof facility; Various inter layers; Decoration board, upholstery for train, car and many more.
3. The final products can use under the sun, beside the water, in the raining , can installed in the soil directly . it has the advantages of plastic and wood.
Main technical parameters:
Model | SJZ-180 | SJZ-240 | SJZ-300 | SJZ-350 | SJZ-400 | SJZ-600 | SJZ-800 | SJZ-1000 |
Max. width of products (mm) |
180 | 240 | 300 | 350 | 400 | 600 | 800 | 1000 |
Main extruder | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
Extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 350 | 400 | 400 | 600 |
Main motor power (kw) | 18.5 | 37 | 37 | 37 | 55 | 55 | 55 | 110 |
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
5.international certification standard.
6.our engineer help and teach customer to test the machine.
