PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine

PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine
PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine

Large Image :  PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ92/188
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine

Description
Certification: CE & ISO9001 Automatic Grade: Fully Automatic
Voltage: 380V 50HZ Warranty: 12 Months
Delivery Time: About 35 Days Type Of Extruder: Twin Screw Extruder
Brand Name: AORUI Frequency Control: ABB
High Light:

Board Production Line

,

Panel Production Line

PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine





Quick detail:



1. Processing flow:

Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→

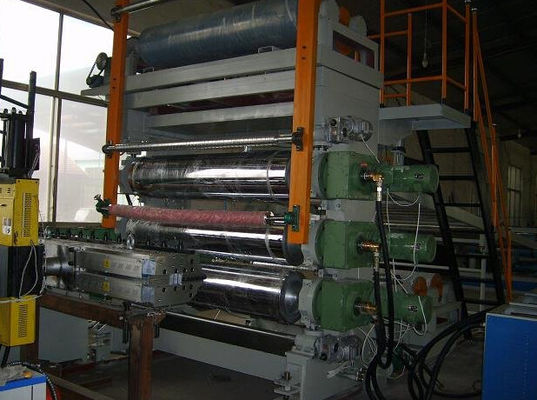

Three calender(online laminating) →Cooling group rollers→Hual off machine

→ Transversal cutter→Edge cutter

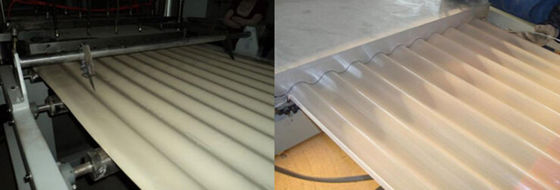

2. The plastic baord production line could produce 300mm, 600mm, 800mm and 1000mm wide hollow and solid plastic board.

High quality, good price and reliable performance. Please don't be hesitate to contact us for more details. And we also warmly welcome you to visit our factory.





Description:



1. PVC foamed skinning board production line is made and designed by our company through many years experience involving in manufacturing PVC free foamed board production line and PVC crush foamed board production line. PVC foamed skinning board product has such characteristics as low density, high surface hardness, good smoothness, etc.



2.80/156 Conical twin Screw Extruder

ABB frequency converter, SIEMENS contactor, RKC Japan, Motor power:75KW

Calibration unit

calibration plate:1500mm×500mm 4couples

Cooling tank and bracket

length:6000mm

trimming knife:3 sets

Haul-off unit

8 couples

cylinder clamping and loosening

Cutting unit

Maxing cutting width:1300mm

Cutting motor power:2.2KW

Stacker

1200*2000mm

Mould (T-Die )



3. The machine line has the following features: Stable production   High output   Long usage life

Main electrical components



4. Plastic sheet/board extrusion line usually composed of extruders,screen changes,melt pumps,distributor,T-die,3-roll calendar,cooling frame,haul-off unit,cutting of machine/winder and relative auxiliary machines ,the raw materials are PET, PP,PE,PS,PC,EVA,PVC etc.final products thickness range is 0.2-30mm,width is up to 3 meters,the sheet /board are mainly used for package of food&industry stationary ,electronic and so on industry.







Applications Of Product


Transportation: such as steamship, aeroplane, carriage, train compartment, roof shed, case core layer, inner upholster, etc.
Architecture: such as building wall board, decoration board, housing, office, public building interlayer, commercial decoration shelf, non-dust room board, ceiling plate, etc.
Advertisement: such as screen printing, computer lettering, ad board, etc.
Industry: such as chemical industry antisepticizing project, thermoforming, for refrigeratory, for temperature keeping, for environment protection, etc
Other applications: such as mold plate, sports equipment, breeding equipment, seashore wet-proof facility, water-fast material, art material, various interlayer, etc.
Production scope: thickness 3-18mm, width 1220mm





Main technical parameters:



Model SJZ-180 SJZ-240 SJZ-300 SJZ-350 SJZ-400 SJZ-600 SJZ-800 SJZ-1000

Max. width of products

(mm)

180 240 300 350 400 600 800 1000
Main extruder SJZ51/105 SJZ65/132 SJZ65/132 SJZ65/132 SJZ80/156 SJZ80/156 SJZ80/156 SJZ92/188
Extrusion capacity(kg/h) 150 250 250 250 350 400 400 600
Main motor power (kw) 18.5 37 37 37 55 55 55 110





Competitive Advantage:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology



Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.

5.international certification standard.

6.our engineer help and teach customer to test the machine.



PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine 0PVC WPC Plastic Board Production Line , High Output PVC Board Making Machine 1
