Product Details:
|
| Brand Name: | AORUI | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Voltage: | 380V 50HZ | Warranty: | 12 Months |
| Application: | Pvc Profile Making Machine | Screw & Barrel Material: | 38Cr MOAIA |
| Place Of Original: | Shandong , China | Automatic Grade: | Fully Automatic |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||
Plastic PVC Profile PVC Ceiling PVC Pannel Extruder Extrusion Line / Plastic Profile Production Line
Quick detail:
1. This pvc profile extrusion line can produce PE , PP or PVC and wood profile products. These products are mainly applied for making pallets , packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max, 50-75%. This machine can produce the PP ,PE ,PVC , ABS , PS and etc.

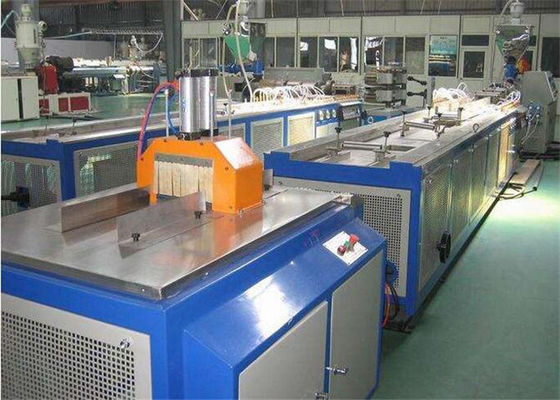

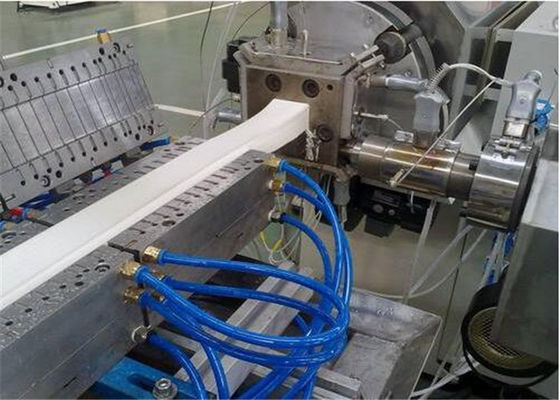

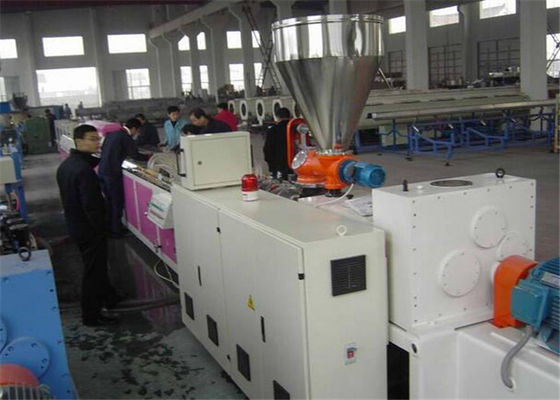

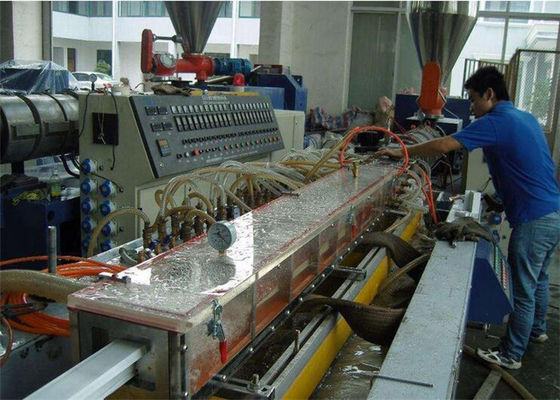

2. This pvc profile machine is composed of cone twin screw extruder, vacuum calibration tank, haul-off, cutter, stacker, and also coordinated with different profile break-section and mould to produce PVC door&window profile,indoor floor, decoration plate material, profile and multi-hole wire plastic products etc.
Description:
1. The output capacity of main extruder is from 150kg/h to 450kg/h for option. Haul-off machine is specially designed with particular up and down technology of our company, working stable, reliable and heavy duty force. Vacuum sizing tank having particular dig eddy low cooling system for cooling and sizing easy for high speed extruding necessary. The action of cross direction saw cutter keeping synchronous with haul-off controlled by import PLC controller, reasonable design, running stable.
2. Apre-heating feeder is mounted on the top of the extruder which extracts the humidity from the wood powder , so that the feeding section of the extruder can be filled with enough material and the plastification effect will be better.
3. Special and well designed screw enables the raw material to be evently stay in the extruder. The screws and barrel are bi-metallic treated , more wearable and anti-corrosion.
4. WPC profile from our machine has following features:
green environment protection, waterproof, dampproof, anti-corrosion, rot-resistence, ametabolic and good fire-retardant.
Also, Wood Plastic Machine WPC Machine can be used after recycling, and has been widely used in fields of floor, guard bar, tray, packing cases, partition board, window and door sheath, skirting line, etc.
Technical Parameters:
| Model | SJ-25 | SJ-30 | SJ-35 | SJ-45 |
| L/D | 25:1 | 25:1 | 25:1 | 25:1 |
| Screw diameter(mm) | 25 | 30 | 35 | 45 |
| Main Motor Power(kw) | 1.5 | 3 | 5.5 | 15 |
| Maximum Capacity(kg/h) | 2-3 | 3-5 | 8-12 | 20-25 |
| Heating Power(kw) | 2 | 3 | 4.1 | 6 |
Applications:
PVC Profile Production Line is mainly used for the PVC windows&door profiles producing and waste PVC profiles recycling.
It purchase the advanced technology of west europ famous brands and redesign according to diffferent countries customers detail requirements to lower the customers cost.
The whole production line can produce the PVC window&doors profiles with width of 300mm(max) and solved the prodblem of waste PVC profiles recycling.
Competitive Advantage:
1.good after-service
2.spare parts are free
3.guarantee:one year or according to customer’s requirement.
4.advanced technology and best quality
5.international certification standard.
6.our engineer help and teach customer to test the machine.
