PP PE Plastic Profile Production Line / PP PE Profile Extrusion Line / Extruder

PP PE Plastic Profile Production Line / PP PE Profile Extrusion Line / Extruder

Quick detail:

1. The production line can produce PE, PP or PVC plastic profile products, durable products, the advantages of plastic products and wood products, plastic products, which not only overcomes the disadvantage of easy deformation, but also overcomes wood corrosion, insects, short life shortcomings, mainly for the tray, packing box board, floor outdoor decoration materials, etc., and is widely used.; wood powder and plant fiber content is high (up to 50-75%).

2. The screw barrel special design, mould and extrusion machine production process for production of wood plastic products. Two single extruder hybrid direct extrusion, also after two step extrusion granulation, save the power and space, with high yield, stable extrusion pressure, preheating feeding machine is arranged in the top of the host, first out most of the wood powder residue the water, so that the feeding section is more fulfilling; characteristics of plasticizing effect is good.

Description:

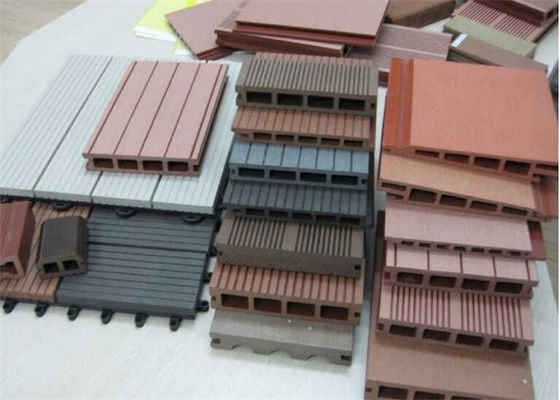

1. The equipment is applicable to produce PC,PP,PE hollow profile board. The products is used widely for building, decorating, advertisement laying, road noise isolation and packing. PP hollow profile board can instead of carton which have feature like light weight, high strengthen, moisture-proof, antisepsis.

2. Process Flows
WPC particle + Extrusion line +Surface treatment(Sanding/Embossed/Brush) + Finished product

3. Cooling tank: tray material :stainless steel202   tray length : 3.5m;   cooling style :water logging cooling; Ningbo FANGLI vacuum pump : 5.5Kw×1 set. Ningbo FANGLI pump power:1.5kw×1set. movement mode: forward and backward with electric governing, and move around by manual adjustment .

Haul-off unit&cutter: haul-off style :twin-belts haul-off,300mm industrial rubber block. effective working length:1.8m.  pneumatic clamping. including oil nylon guide. DELTA frequency control motor speed. manual adjusting the center height

Technical Parameters:

Applications:

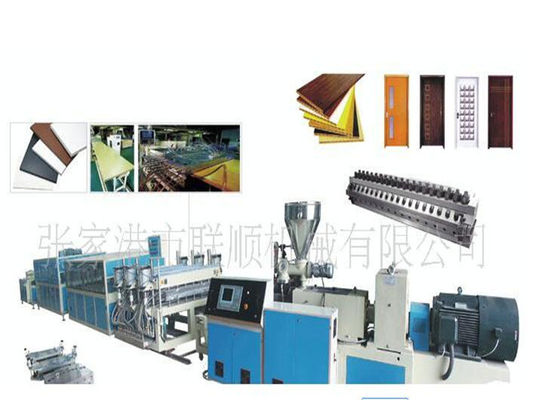

AORUI series conical twin screw extruder is a highly efficient agglomeration and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation,even plastication and agglomeration, reliable quality,wide application range and long servicing life. Using PE powder as raw material for a direct forming, the exturders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced and self-cleaning mechanism.


Competitive Advantage:

1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
