Product Details:
|
| Brand Name: | AORUI | Condtion: | New |
|---|---|---|---|
| Certificate: | CE ISO9001 | Nitrded Layer Thickness: | 0.4-0.7mm |
| Screw Number: | Two | Payment Terms: | TT Or L/C |
| Motor: | Simens | Frequency Control: | ABB |
| Raw Material: | PVC | Place Of Original: | Qingdao City |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||
PVC WPC Profile Production Line , PVC Plastic and Wood Foamed Profile Extrusion Line
Quick detail:
1. Working flow
SJZ Series Conical Twin Screw Extruder→ Die mould → Vacuum Calibration Table → QYQ series Haul-offs and Cutting Machine Unite →DF series Stacker → Control cabinet
(Note: Other Auxiliary Machine, such as crusher, mixer, will be provided according to client's requirements)
2. PP PE PVC WPC Profiles Extrusion Line- wood plastic composite wpc profile manufacturing machine

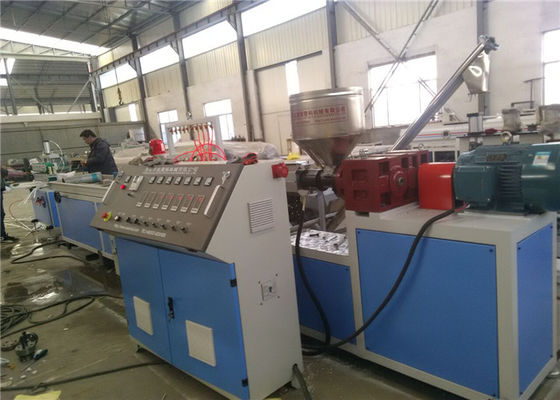

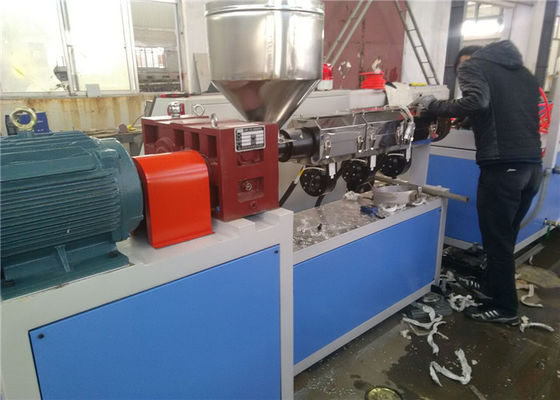

2.1 Twin Screw Extruder SJSZ-65/132
2.2 Extrusion die
2.3 Profile moulds

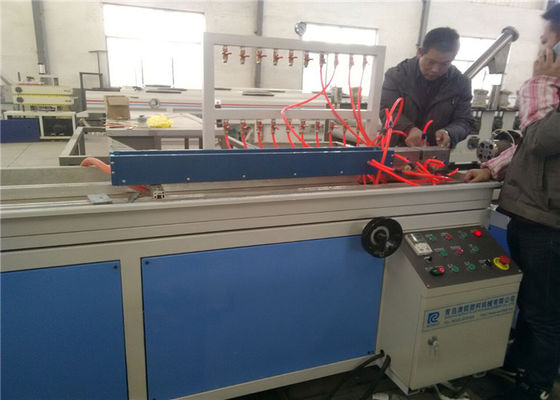

2.4 Vacuum Calibrating Table

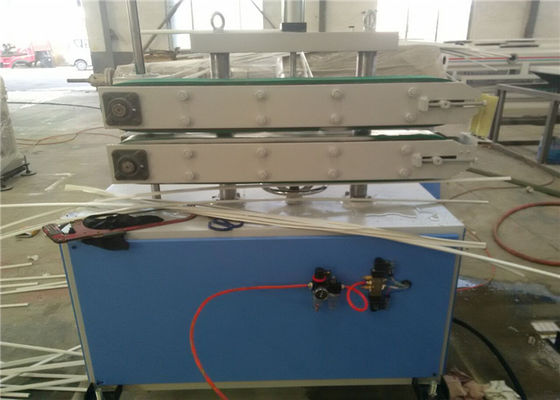

2.5 haul-off machine
2.6 Cutting machine
2.7 Tilting table
2.8 Electrical control cabinet
Description:
1. This line is used for production PVC decoration material with different shape and size for different application (Including PVC plastic doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates, etc)
2. The WPC profile extrusion line adopts specially-designed screw, barrel, mould, and our unique WPC process and formula. The extruder can match perfectly with the auxilary machines and moulds. The whole production line is of automatic control from the loading to the final discharging. The machines also can be manually adjusted separately.
3. With the advantages of good plastication, low energy-consuption, high outpt, excellent performance, long service life, etc. it can be equipped with relative auxiliar equipment, such as vacuum calibration platform, haul-off machine, cutting machine, material reversal stacker.
Technical Parameters:
|
Model |
SJSZ45/100 | SJSZ51/105 | SJSZ55/120 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Power of drive motor (kw) |
15 | 18.5 | 22 | 37 | 55 | 110 |
| Screw diameter (mm) |
Ø45/Ø100 | Ø51/Ø105 | Ø55/120 | Ø65/Ø132 | Ø80/Ø156 | Ø92/188 |
| No.of screw | 2 | 2 | 2 | 2 | 2 | 2 |
| Rotational speed | 36 | 36 | 36 | 36 | 36 | 36 |
| Nm torsional moment of screw | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
| Capacity PVC powder (kg/h) |
70 | 100 | 150 | 250 | 400 | 750 |
| Central height(mm) | 1000 | 1000 | 1000 | 100 | 1000 | 1100 |
Applications:
YF Series PE PP profiles extrusion line is mainly used in PP PE plastic steel doors and windows profile,window panels, perforated pipe threading and foam profile extrusion products. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
Competitive Advantage:
24 hours services;
Overseas installation;
Free operation training and technology formula transfer;
Old machine update;
Spare parts and maintenance with reasonable cost price.
