Brand Name: | AORUI |
Model Number: | SJ65/33 |
MOQ: | One set |
Price: | Negotiable |
Payment Terms: | T/T L/C |
Supply Ability: | 10 Sets per month |

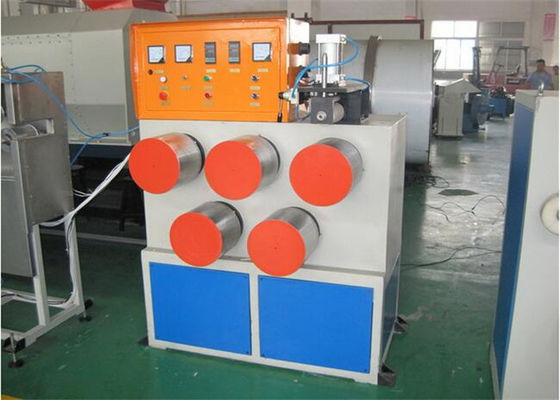

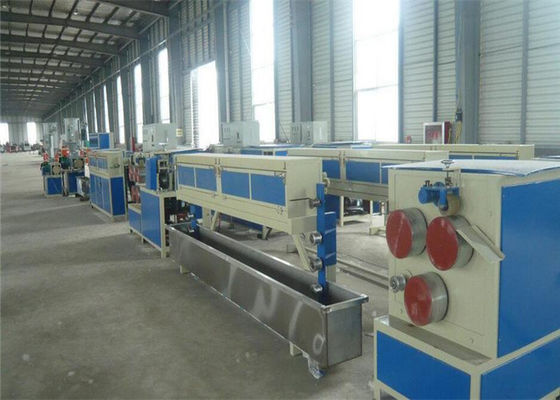

PET PP Strap Band Extruding Machine / PET PP Strap Band Packing Extruder Machines
Quick detail:
1. The extruding product of Runjia PET packing strap machine is a kind of plastic using PET as the raw materials. The product can widely used in packing for items, cartons, ceramics, floor boards, floor tiles, papers, wooden products, textiles, cotton, canned products, chemical products, electrical cables,
machinery and electronic products and pallets of a variety of products. At the same time, there are many application fields in the aspects of food packing, industrial packing, and medical packing and so on.
2. Characteristics:
1). Strong tensile resistance. There are tensile resistence like steel strip and ductility which can resist impact, further enabling the guarantee of the transportation safety;
2). Small extensibility. The extensibility is only one sixth of the PP packing strap, enabling to maintain the take-up tension for a long time;
Description:
1. Single screw or twin screw technique for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line, The dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectively. Sinbgle strap or double strap for option.
2. PP strap with the main material is polypropylene resin, drawing class, because of its plasticity, fracture tensile strength, bending resistance, light weight, easy to use, etc., are processed into the banding has been widely role in various fields.
3. The entire line can be controlled via a touch screen. Production speeds can be up to 120m/min, low waste. Choice of one, two, four and six straps production line.
4. The main machine drive consists of frequency control motor and special hard tooth-surface reducer for plastic extruding machine. Forming part is composed of screw feed barrel, frame head and die. The raw material is heated from hopper to screw feed barrel, and the rough block is extruded.
Specifications:
Technological parameter:
Strapping diameter | 6-32mm |
Screw diameter | 65 |
L/D | 34:1 |
Screw material | 38CrMoAlA |
Barrel material | 38CrMoAlA |
Barrel heating | Casting aluminum |
Barrel cooling | Water |
Driving motor | 37kw |
Cooling tank length | 1200mm |
Seven Pre-heating roller | Dia. 215mm |
Stretch oven | Carbon Steel welding |
Heating power | 15kw |
Five stretch roller | Dia. 215mm |
Three cooling roller | Dia. 215mm |
Calibrating box length | 4000mm |
Three roller pulling | Dia. 215mm |
Winding unit | Automatic winding |
Total installation power | ~105kw |
Machine dimension | 38000x1300x28000mm |
Weight | 18ton |
Application :

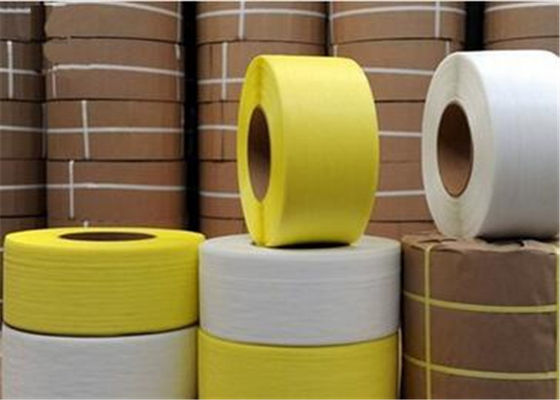

PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, Special twin screw extrusion technology and single screw extrusion technology,can be choose as per customer needs.
Competitive Advantage:
1.100%recycle material
2.strong vacuum system to dispense with dehumidify and dry
3.the recycle material consumption is low
