Product Details:
|
Place Of Original: | Shandong , China | Color: | Bule Or According To Customer's Requirement |
---|---|---|---|
Raw Material: | PP PET | Automatic Grade: | Fully Automatic |
Port: | Qingdao | Certificate: | CE ISO9001 |
Warranty: | 12 Months | Condition: | New |
High Light: | Strap Making Machine,Automatic Strapping Machine |

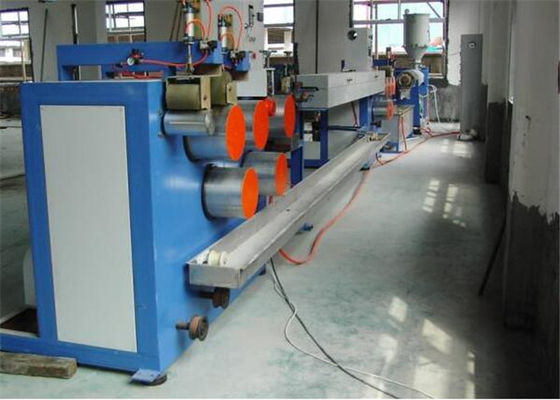

Fully Automatic PET PP Strapping Band Machine With PC Control / PP Strap Band Machine
Quick detail:
1. Excellent Tensile Strength to instead of steel strap
Excellent Tensile Strength and Welding Strength
Easy, safe and economical to use
Superior Flexibility for convenient operation
Super Weather Resistance
Excellent Rusty and Chemical Resistance
2. Single screw or twin screw techniquw for option depending on the requiremnt. 100% recycling flakes cvan be used for production. Exen plasticization and stable extrusion with PC automatic control for the full line. The dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectvely. Single strap or double strap for option.
Description:
1. Produce 1-32 straps at the same time. Automatic operation and labor saving. High production. Reasonable drive system and unique oven. Energy saving. Safety, environment protection and economy. Produce lighter weight straps(L:12,W:0.6 strap, only 3.1g). Produce manual and automatic machine straps. Low skewness, strong tensile strength and stable quality. Extrusion capacity: 50kgs/h or 80kgs/h or 120kgs/h. Straps specification: 5-19mm Width,0.4-1.2mm Thickness.
2. The series PP strap production line is new equipment designed by Mooge. By combining the characters of the same type of machines in domestic and overseas markets, the production line is of the most advanced technology in this field. It is of characters of high efficiency, high output, low power consumption and energy saving.

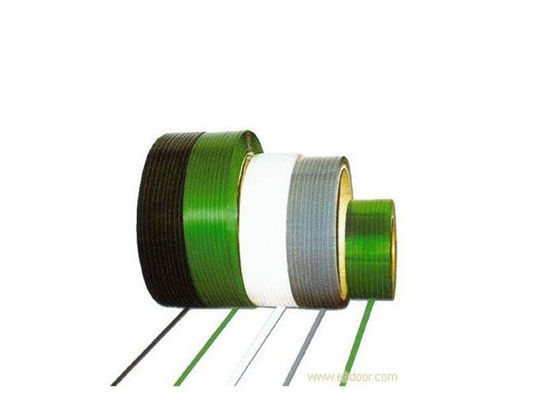

3. PP Straps have advantages as good stiffness, high temperature resistance. The specific gravity is as 1/5 as steel. The straps can be used for packing in various areas. The characters of such straps are as follows: high tensile strength, small percentage elongation, resistance to impact, not easy to be broken and good softness.
Specifications:
Technological parameter:
Strapping diameter |
6-32mm |
Screw diameter |
65 |
L/D |
34:1 |
Screw material |
38CrMoAlA |
Barrel material |
38CrMoAlA |
Barrel heating |
Casting aluminum |
Barrel cooling |
Water |
Driving motor |
37kw |
Cooling tank length |
1200mm |
Seven Pre-heating roller |
Dia. 215mm |
Stretch oven |
Carbon Steel welding |
Heating power |
15kw |
Five stretch roller |
Dia. 215mm |
Three cooling roller |
Dia. 215mm |
Calibrating box length |
4000mm |
Three roller pulling |
Dia. 215mm |
Winding unit |
Automatic winding |
Total installation power |
~105kw |
Machine dimension |
38000x1300x28000mm |
Weight |
18ton |
Application :
PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, Special twin screw extrusion technology and single screw extrusion technology,can be choose as per customer needs.
Competitive Advantage:
