Single Screw PE Pipe Extrusion Line , PE Pipe Machine For PE Water Pipe Production

Brand Name:	AORUI
Model Number:	SJ90/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE & ISO9001

Condition:

New

Screw Number:

One

Machine Name:

PE Pipe Making Machine

Trade Mark:

Aorui

Frequency Control:

ABB

Certificate:

CE ISO9001

Payment Terms:

TT Or L/C

Temperature Control:

Omron

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic pipe extruder machine

plastic pipe production line

Product Description

PE Pipe Production Line , PE Ppe Extrusion Line , PE Pipe Extruder

Quick detail

1.This pe pipe machine can produce pipe with different diameter.

2.Pipe diameter from 16-630mm.Different pipe diameter has different model.

3.PE PP PPR pipe Making line is consisted of extruder, vacuum calibrator, hauling machine,cutter and tipping rack, hauling machine unit has come ways of hauling, such as caterpillar type, three-claw type, four-claw type, six-claw type and so on. There are also knife-lifting cutter and planetary cutter.

4.This ppr pe pipe machine has such characteritics: High efficiency, high output, cost save etc.

Description:

1.The entire production line USES proprietary sizing and cooling systems,adopt water film lubrication and water ring cooling,to meet the requirements of pp PE material, to ensure that the high-speed production of thick-walled tube is stable in diameter and roundness.
2.The vacuum sizing box with multi-stage vacuum degree control is specially designed to ensure the dimension stability and roundness of pp PE pipe.

3.PLC is adopted for programmed control, with good man-machine interface, and all process parameters can be set and displayed through touch screen. Special extruder for marking line can be assembled to produce tubes with color marking line in line with national standards.

Feartures of PE Pipe Production Line:

HDPE PE tube pipe making extrusion machine
a) Highly automatic
b) Even plasticization

Main Technical Parameters:

Model Parameters	LGSJ-110	LGSJ-130	LGSJ-150	LGSJ-180	LGSJ-210
Screw diameter (mm)	110	130	150	180	210
Screw length(mm)	2000	2200	2400	2600	2800
Machine power(kw)	22	30	37	45	55
screw rotate speed (r/min)	55-60	50-55	45-50	40-45	35-40
Changer motor power(kw)	1.5	1.5	1.5	1.5	2.2
Production capacity(kg/h)	80	100	150	200	250
Matched pelleter power (kw)	1.1	1.1	1.1	1.1	2.2
Matched crusher/washer power (kw)	18.5/7.5	18.5/7.5	22/11	30/15	37/18.5
Crusher & washers production capacity (kg/h)	400	450	500	600	600
3+1PH380V50HZ PC Machine installed power	60	80	100	120	140

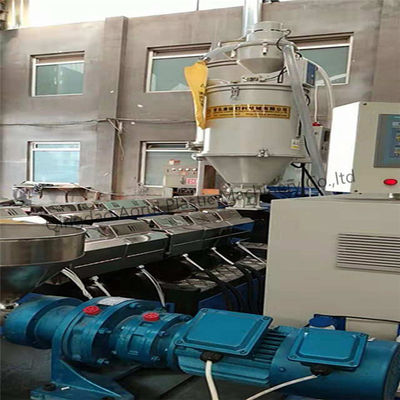

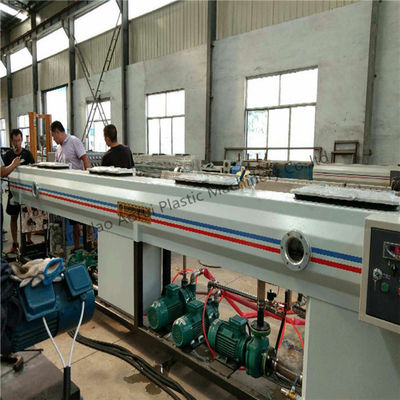

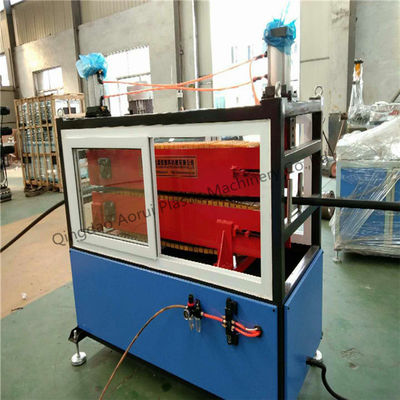

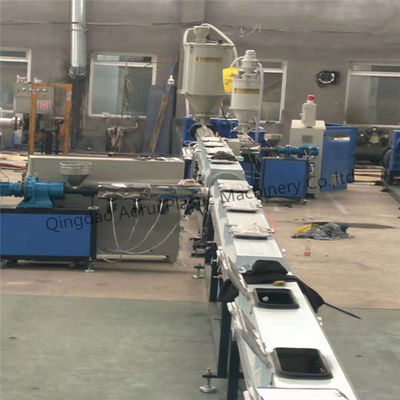

Machine Display:

Single Screw PE Pipe Extrusion Line , PE Pipe Machine For PE Water Pipe Production 0
