Product Details:
|
| Plastic Processed: | PE | Feed Mode: | One Feed |
|---|---|---|---|
| Type: | Pipe Extruder | Automatic Grade: | Fully Automatic |
| Speed Control: | ABB Frequency Control | Exhaust: | Exhaust |
| Application: | PE Corrugated Pipe | Specification: | CE ISO9001 |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

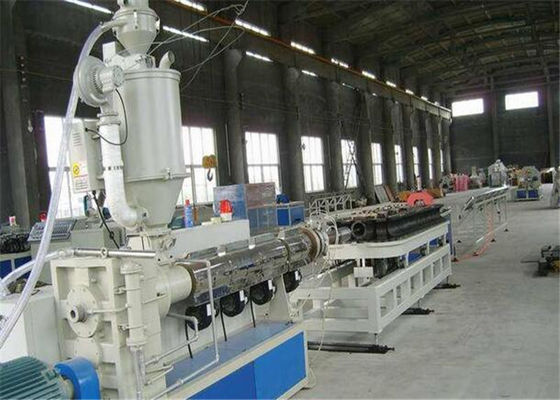

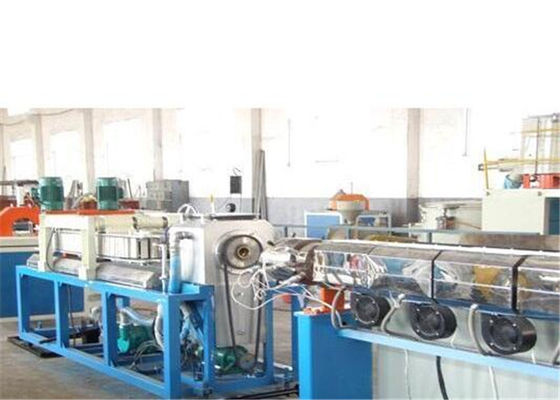

Corrugated Plastic Pipe Extrusion Line , PE Corrugated Pipe Extruder Machine
Quick detail:
1. Special single screw extruder for the use of polyolefine material , high speed extrusion and effective plasticization. The special detachment type mixing screw and the standrad designed die with sprial structure & reasonable channel are applicable to produce pipes with smooth inside and outside face.
2. PE PP PVC Corrugated Pipe Production Line Process line:

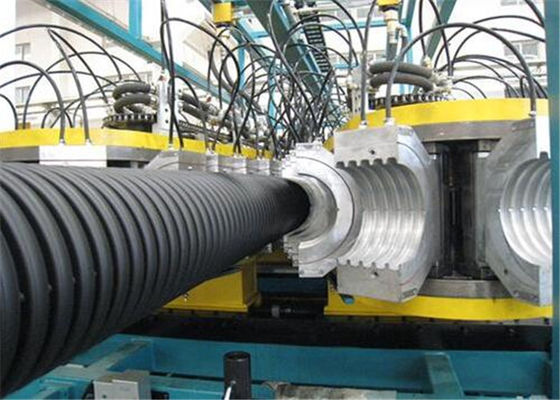

Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Description:
1. This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes. Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
2. This machine has features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are also used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
3. Unique sizing and cooling mode is capable of producing pipe scope 50-200mm,production speed is up to 0.6-1.5m/min. Machinery is in sole possession of the special design to sizing cooling way to make the speed for leading position of the same line.
The main technique parameter :
| Pipe diameter range(mm) | 4.5-9 | 9-32 | 32-50 | 63-110 |
| Main machine model | GB-SJ45 | GB-SJ50 | GB-SJ65 | GB-SJ75 |
| Main machine l/d | 28:1 | 28:1 | 28:1 | 28:1 |
| Production capacity kg/h | 10 | 40 | 80 | 150 |
| Main motor capacity kw | 7.5 | 11 | 18.5 | 37 |
| Molding machine capacity kw | 1.5 | 1.5 | 2.2 | 6 |
| Pair of mould | 45 | 45 | 60 | 72 |
| Cooling mode | Water cooling or fan cooling or both type | |||
| Production (m/min) | 6-10 | 8-12 | 8-15 | 8-15 |
| Metering mode | inducting mode | |||
| Coiling machine mode | Automatic or Manually-operated | |||
Applications:
Characteristics and Application of Pipe:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
Competitive Advantage:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
