Product Details:
|
| Model Number: | SJ65/33 | Feeding Mode: | Automatic Feed |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Place Of Original: | Shandong , China |
| Certificate: | CE ISO9001 | Raw Material: | PET |
| Brand Name: | Aorui | Screw Design: | Single Screw |
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||

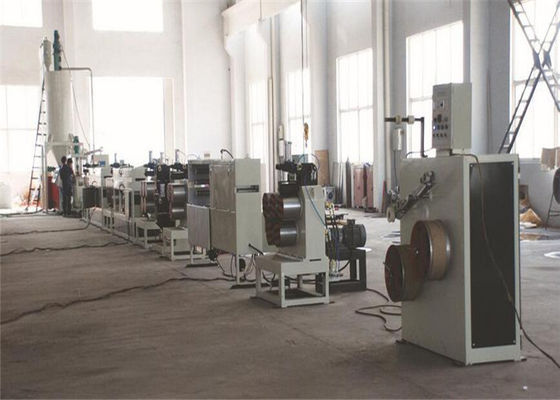

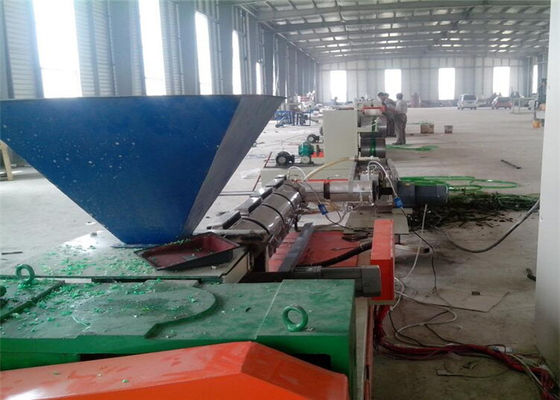

High Efficiency PET Packing Belt Extrusion Line , Plastic Strap Band Machine
Quick detail:
High Efficiency PET Packing Belt Extruding Line/Plastic Strap Machine
1.100% PET recycle material or mixed with raw material
2. Crystal and dehumidify drying system
3. Single screw or parallel double screw extruder
4. The filter of double columns with four working positions can get rid of impurity effectively
5. The dosing pump ensures continuous and stable production
6. Extruding one strap or double straps
7. Breaking strength>10000N
8. Single or double strap extrusion
Description:
1. PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, Special twin screw extrusion technology and single screw extrusion technology,can be choose as per customer needs.
2. Single screw or twin screw technique for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line. The dosing pump ensure continous and stable production. The filter of double columns with four working positions can get rid of impurity effectively.
3. The supplier provide service manual and maintenance instruction of main electric appliance ,limb , usage manual of equipment We also supply water,electricity,gas of equipment and installation drawing. the supplier is responsible for installation,debug and training, we will realize guarantee of repair; replacement of substandard products within one year. After the machine leaves factory. Fittings of the machine will supply at preferential price after one year .
Technological parameter:
|
Main Details
|
Raw Material
|
PET recycled flakes or PET original flakes
|
|
|
Final Product
|

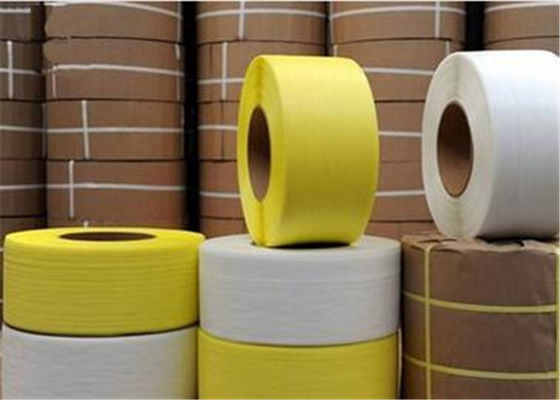

PET Packing Strapping Band
|
||
|
Product Specifications
|
Width: 9mm-25mm
|
Thickness: 0.5mm-1.2mm
|
|
|
Machine Details
|
Capacity
|
2T-3T/Day(24 hours)
|
|
|
Workers
|
2-3 persons/ turn
|
||
|
Total Power
|
120kw-160kw
|
||
|
Extruder Model
|
SJ65/75 Single Screw Extruder
|
80kg/Hour
|
|
|
SJ90 Single Screw Extruder
|
150kg/Hour
|
||
|
Workshop Area Need
|
(L*W*H): (25-30m)*(3-5m)*(3-6m)
|
||
Application :
PET straps for cotton bales, for Can Package, for Paper Industry, for strapping Steel Coils, for Clay Building Bricks, for Aluminum Ingots, for Fibre Bales, etc.
Competitive Advantage:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
