Product Details:
|
| Brand Name: | Aorui | Power: | 37kw |
|---|---|---|---|
| Type Of Extruder: | Twin Screw Extruder | Voltage: | 380V 50HZ |
| Warrnaty: | 12 Months | Delivery Time: | About 30 Days |
| Place Of Original: | Shandong , China | Automatic Grade: | Fully Automatic |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
PVC Reinforced Pipe Extrusion Machine , Plastic PVC Fiber Reinforced Pipe Making Machine
Quick detail

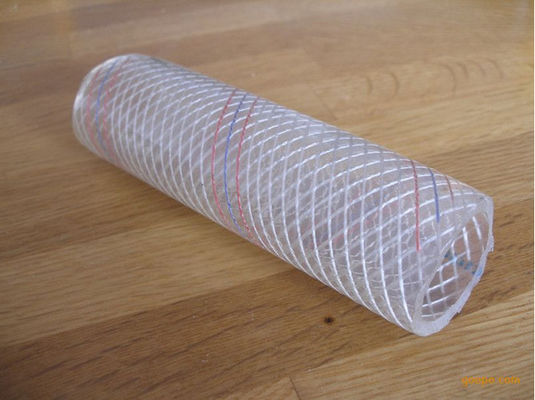

PVC fiber reinforced hose also named as PVC net hose, suitable for pressure or corrosive gas, liquid transporting, widely used in machinery, coal, petroleum, chemical industry, agricultural irrigation, construction, civil and other fields. Now also used in a large number of gardens, lawn watering.
Specifications:
1. The PVC and PE spiral reinforcing pipe have the advantage of pressure and corrosive resistance, negative pressure and bend resistance. It is used to convey the gas, liquid and powder material. It is widely used in industry, agriculture, archintecture, water conservancy irrigation and dust collector.
2. pvc fiber pipe line

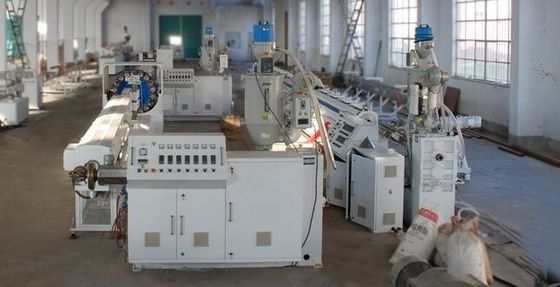

Main extruder→ Die → Braider → Cooling bath → Drying tank → Haul off → Winder → Ink printer → Electric cabinet
Applications:
pvc fiber pipe line

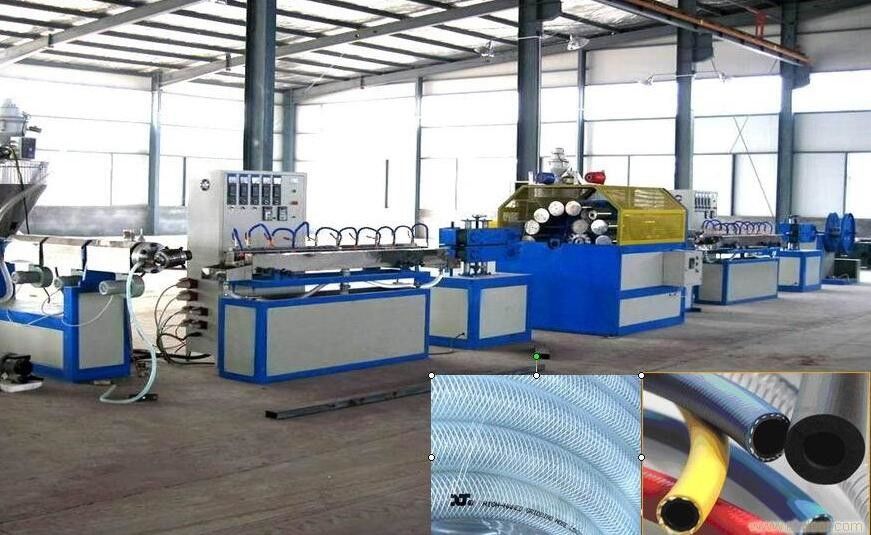

This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.
Main technical parameter
| Model | JG-WQG45 | JG-WQG65 | JG-LCSG45 |
| Extruder | Ø45/25 | Ø65/25 | Ø45/25×2, Ø30/25 |
| Range of pipe dia. | Ø6-25mm | Ø8-38mm | Ø8-20mm |
| Output (approx) | 35-65kg/h | 35-80kg/h | 30-50kg/h |
| Installed capacity (approx) | 40kw | 60kw | 45kw |
| Average power consumption (approx) | 24kw | 40kw | 30kw |
| Dimensions (L×W×H)(approx) | 12×3×1.5m | 13×5×1.5m | 15×3×1.5m |
| Total weight (approx) | 4.5t | 6t | 5t |
| Screw Design | Single-design | ||
| Voltage | 380V/220V | ||
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
