Product Details:
|
| Condition: | New | Screw Design: | Single Screw |
|---|---|---|---|
| Voltage: | 380V 50HZ | Raw Material: | PET |
| Application: | Strap Band | Port: | Qingdao |
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 |
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||
High Quality Plastic PET Strap Bnad Making Machine , PP PET Strap Band Extrusion Machine For Packing
Quick detail:
1. Single screw or double screw technique for option depending on the requirement , 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line .
2. The dosing pump ensures continuous and stable production. The fifter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.
Description:
1. The raw material will be dried by the dehumidifier, and the below 40 dew point make the material humidity less than 40PPM and condensation polymerization; The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order to made perfect effect of drying.
2. Special designed extruder screw for PET production, bear the better performance of material separating and mixing. Automatic material feeding provide the smooth environment for the PET strap production. Special designed extrusion die & mould; And the improved screen changer realize non-stop screen changing, and without material leakage.
3. Features:
(1) high tensile strength, both strip-like tensile strength, but also can impact scalability, better ensure transportation safety products.
(2) Small elongation, elongation rate is one-sixth of polypropylene tape, can long maintain the tension.
(3) temperature resistance, melting point of 260 degrees, 120 degrees below the use of deformation.
(4) safety, without risk of pollution rusty steel tied objects, bright colors to be learned.
(5) economic good, one ton PET packaging belt length equivalent to 6 tons with the specifications of the strip length, unit price per meter more than 40% lower than steel, to reduce packaging costs.
Technological parameter:
|
Strapping diameter |
6-32mm |
|
Screw diameter |
65 |
|
L/D |
34:1 |
|
Screw material |
38CrMoAlA |
|
Barrel material |
38CrMoAlA |
|
Barrel heating |
Casting aluminum |
|
Barrel cooling |
Water |
|
Driving motor |
37kw |
|
Cooling tank length |
1200mm |
|
Seven Pre-heating roller |
Dia. 215mm |
|
Stretch oven |
Carbon Steel welding |
|
Heating power |
15kw |
|
Five stretch roller |
Dia. 215mm |
|
Three cooling roller |
Dia. 215mm |
|
Calibrating box length |
4000mm |
|
Three roller pulling |
Dia. 215mm |
|
Winding unit |
Automatic winding |
|
Total installation power |
~105kw |
|
Machine dimension |
38000x1300x28000mm |
|
Weight |
18ton |
Application :

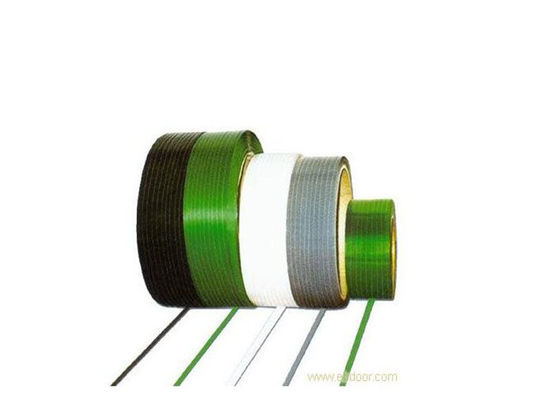

PET straps for cotton bales, for Can Package, for Paper Industry, for strapping Steel Coils, for Clay Building Bricks, for Aluminum Ingots, for Fibre Bales, etc.
Competitive Advantage:
1. CE ISO9001 Certificate
2. We are factory , we can invite customer come to our factory visit and test machine
3. Engineers availiable go to aborad to test machine and train local workers
