Product Details:
|
| Brand Name: | Aorui | Product Type: | PET Strap Band |
|---|---|---|---|
| Screw Design: | Single Screw | Automatic Grade: | Fully Automatic |
| Inverter: | ABB | Voltage: | 380V 50HZ |
| Motor: | Siemens | Port: | Qingdao |
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||

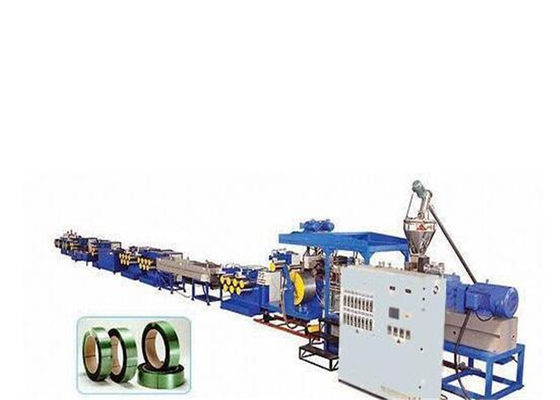

PET PP Strap Band Making Machinery , PET Strapping Band Extrusion Machinery With 0.55-0.9mm
Quick detail:
The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; gearbox with hardened gears; die can be precisely adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality of products; new rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; laser embossing roller makes clear and even patterns.
Description:
1. PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
2. This production line is used to producr the pet packing band,pet packing strap;adopt the plc control the whole line do the auotmatic production,it use the melting pump and pressure sensor ensure the production stable and strap quality control the raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.
Technological parameter:
| Model | Capactity(kg/h) | Strap Size | Install power | Manpower | Diemension |
| SJ65/33 Single Strap | 50~60 | 9~19mm | 85kw | 1~2 | 35MX4MX5M |
| SJ75/33 Single Strap | 80~100 | 9~19mm | 100kw | 1~2 | 38MX4MX6M |
| SJ75/33 Double Strap | 80~120 | 9~19mm | 110kw | 1~2 | 40MX4MX6M |
| SJ90/33 Double Strap | 120~150 | 9~19mm | 150kw | 1~2 | 45MX5MX7M |
| SJ120/33 Double Strap | 150~200 | 9~25mm | 220kw | 1~2 | 45MX5MX7M |
Application :
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
Competitive Advantage:
1.Good pre-sales and after-sales service
2.Spare parts are free
3.Warranty time:12 months
4.Advanced technology and best quality machine
5.Internation standard certificateion : CE ISO9001 Certificate
6.our engineer help and teach customer to test the machine
