380V 50HZ pet strap making machine For Packing / plastic banding machine

380V 50HZ pet strap making machine For Packing / plastic banding machine
380V 50HZ pet strap making machine For Packing / plastic banding machine 380V 50HZ pet strap making machine For Packing / plastic banding machine 380V 50HZ pet strap making machine For Packing / plastic banding machine

Large Image :  380V 50HZ pet strap making machine For Packing / plastic banding machine

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

380V 50HZ pet strap making machine For Packing / plastic banding machine

Description
Brand Name: Aorui Voltage: 380V 50HZ
Width Of Strap Band: 9-32mm Plastic Processed: PET
Warranty: 12 Months After-sales Service: Engineers Availiable To Service
Automatic Grade: Fully Automatic Certificate: CEISO9001 Certificate
High Light:

Strap Making Machine

,

Automatic Strapping Machine

pp pet Strap Band Making Machine , PET PP Strapping Band Extrusion Line For Packing





Quick detail:



    PP Strapping Band Extrusion Machine
    PP Strap Band Making Line
    Strap Making Machine
    PET Tape Extrusion Production Line
    PP Strapping Band Making Machine
    PP Strap Making Machine
    4 Exits PP Strap band extrusion line machine









Description:



Production Specification of pet strapping band making machine:

Processing material: 100% recycled PET flakes or virgin PET (I.V ≥0.75)

Product width: 9-25mm

Strap thickness: 0.5-1.2mm

Quantity of extruded straps band: 4strands/ 2 strands/1 strands

Max output: 200kg/hr

Max Liner speed: 120m/min ×2

Power supply: 380V/3P/50Hz

Installed power: 280KW (production power: about 130KW )

Operators: 2-3

Overall dimension: 36m×6m×4.5m (36 meters to be overall dimensions including winders.)

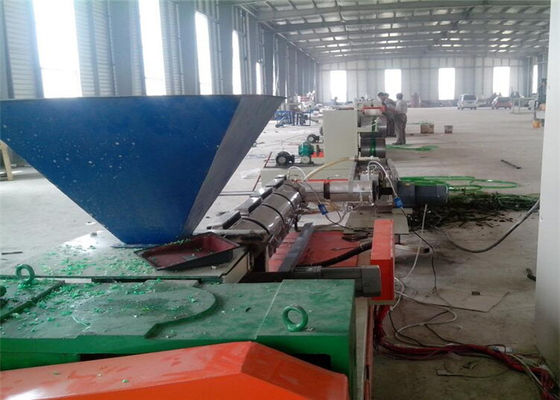

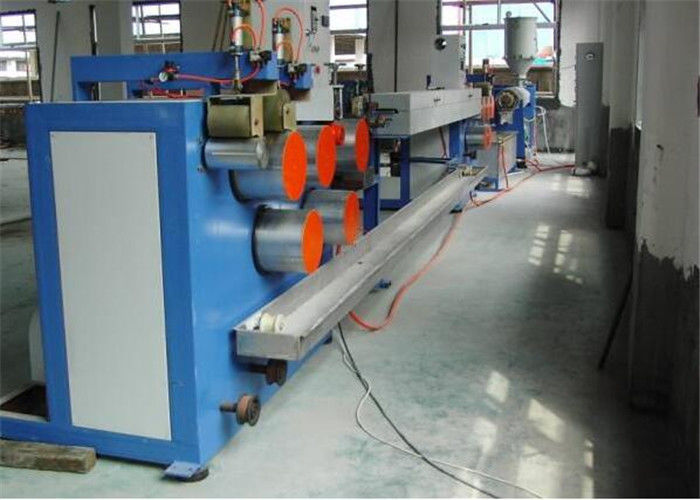

pp strap manufacturing machine is composed of forced extruder (main machine), cooling tank,1st stretching unit,wind heat stretching oven,2ND stretching unit,character printer, embossing machine, light-heat shaping oven, water tank for shaping, 3rd stretching unit and light weight curler.The standard installation shall be in line and in order, and the technological process of the machine as shown in following figure.







Technological parameter:



Strapping band width range 9-32mm
Production line speed 80m/min
Stretch radio 4-9
Maximum capacity 60-200kg/h









Application :

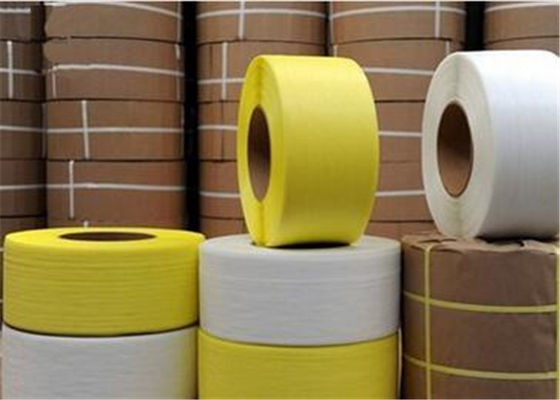

PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, Special twin screw extrusion technology and single screw extrusion technology,can be choose as per customer needs.







Competitive Advantage:



1. Offering high quality products with competirive prices.

2. Working with experienced forwarder for safe shipping.

3. Trust-worthy after-sale service.

4. 100% Satisfy your needs with professional staff.

380V 50HZ pet strap making machine For Packing / plastic banding machine 0
