| Brand Name: | AORUI |
| Model Number: | SJSZ65/132 |
| MOQ: | One set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 Sets per month |

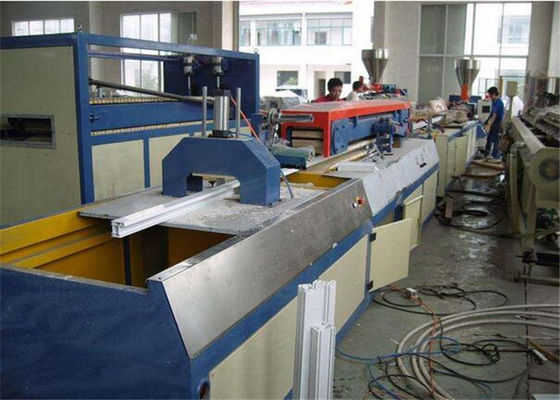

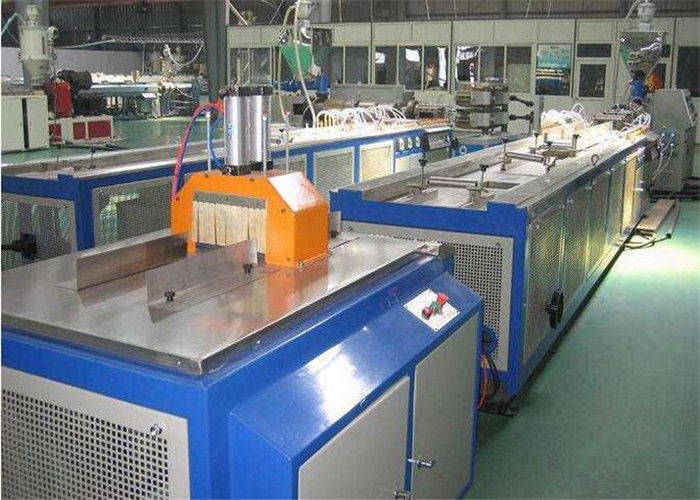

Bule Plastic Profile Extrusion Line , Wood Plastic Wpc Profile Machine One Year Warranty
Quick detail:
1. PVC WPC PROFILE EXTRUDER MACHINE Process Flow:

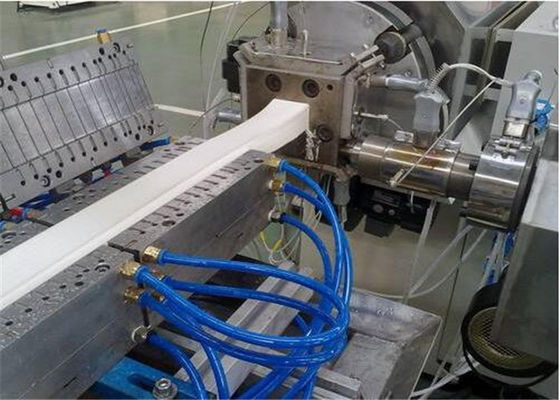

Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product
2. This machine With PLC Control system in the production line, reliable and stable performance;
The down stream equipment includes vacuum calibration and cooling unit, haul-off unit, cutting machine and stacker.
Description:
1. Our twin screw extruders are made of Siemens Beide main motor, ABB inverter, Omron temperature controller, and Chinese famous brand gearbox, etc. The screw and barrel is under nitriding process for longer using life.
2. Needless granulating of materials, mixed with wood powder, the material can be directly used to extrude wood-plastic profiles. Suitable material: PE, PP + wood powder, PVC + wood powde.Applicable for producing salver, packaging box board and decorative sheets, etc.
3. The machine can produce PE , PP , or PVC and wood profile products. These products are mainly applied for making pallets ,packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max, 50-75%. This machine can produce the PP, PE, PVC , ABS , PS and etc.
Applications:
1.SJSZ series conical twin screw stem extruder is composed of barrel screw, gear transmission system, measurable feeding, vacuum degassing, heating, cooling and electronic control components etc.
2.It is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film, profiles, and granules etc.
Specifications:
| Model | SJSZ45 | SJSZ51 | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 |
| Screw diameter(mm) | 45/100 | 51/105 | 55/120 | 65/132 | 80/156 | 92/188 |
| Screw quantity | 2 | |||||
| Screw rotating direction | Turing outwards with different direction | |||||
| Screw rotation speed(r/min) | 1-38 | 1-38 | 1-38 | 1-36 | 1-35 | 1-34 |
| Effective length of screw(mm) | 1000 | 1050 | 1150 | 1430 | 1800 | 2520 |
| Main motor power(kw) | 15 | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power(kw) | 12 | 12 | 18 | 24 | 36 | 48 |
| Production capacity(kg/h) | 95 | 110 | 150 | 250 | 380 | 520 |
| Central height(mm) | 1000 | |||||
| Net weight(kg) | 3000 | 3200 | 4200 | 5000 | 6500 | 7500 |
Competitive Advantage:
1. Good pre-sales and after-sales service
2. High quality machine with reasonable price
3. Engineers availiable to service
4. CE ISO9001 Certificate
