Product Details:
|
| Model Number: | SJSZ65/132 | Certificate: | CE ISO9001 |
|---|---|---|---|
| Brand Name: | Aorui | Voltage: | 380V 50HZ |
| Automatic Grade: | Fully Automatic | Screw Design: | Double Screw |
| Warranty: | 1 Year | Payment Terms: | TT Or L/C |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||
Double Screw Wood Plastic WPC Profile Extruder Machine , PVC Profile Extrusion Line
Quick detail:
1.SJZ series cone twin-screw extruders are specially for various PVC powder materials. Mated with different moulds and auxiliary machinery, they can produce various PVC plastic pipes, profile materials, board materials, sheets, bars, and granulating materials.
2.The screw adopts oil cooling system while the barrel adopts air cooling system. The system is controlled by dedicated computers. According to customer requirements, most reasonable screws can be configured to achieve optimal plasticization and logistic quality.
Description:

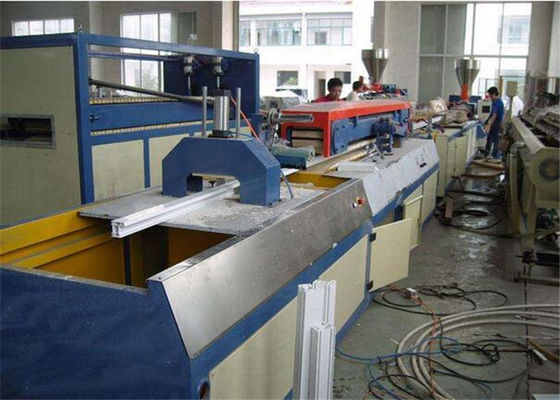

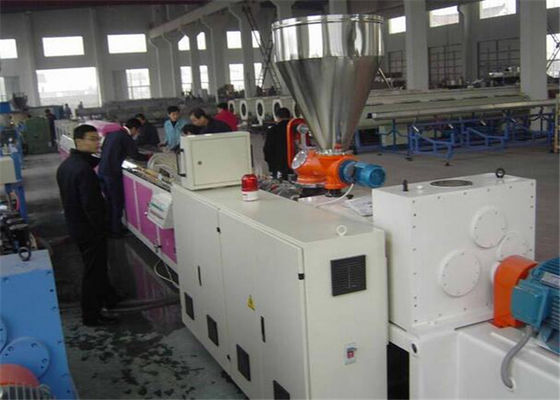

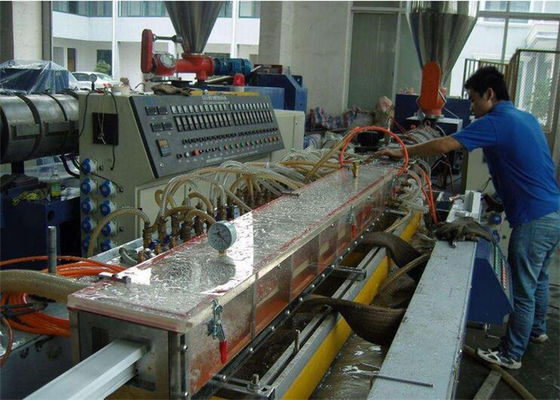

1. Plastic profile production line is using PVC material and it is applied to produce PVC window door frame profile,PVC ceiling panel profile,PVC cable trunking profile by changing different mould. This production is composed of conical twin-screw extruder,mould,vacuum calibration table, haul-off, cutter and stacker.
2. The screw adopts oil-cooling way, and the barrel is cooled by special air- cooling
system.
3. Good and uniform plasticization, high output, wide applications, stable characters.
4.Special designed reduction box and distribution box,strengthened thrust bearing, big transmission torque, long-life.
5.PLC/PC automatic control adopted by electrical cabinet, temperature controller used by convention equipment.
6.Imported elements, equipped with alarm function, simple operation, easy maintenance,etc.
Applications:
1. Fetching in Europe and America advanced technology and uniting with domestic condition, our company develop this production line.
2. This production line is mainly used to produce PVC profile, such as Ceiling, Deck, Floor, Cornice, Plank, Windows, Door frame and board and etc.
Specifications:
| Model | SJ-30 | SJ-45 | SJ-55 | SJ-65 | SJ-75 | SJ-90 | SJ-100 | SJ-120 | SJ-150 |
| Screw diameter(mm) | 30 | 45 | 55 | 65 | 75 | 90 | 100 | 120 | 150 |
| L/D | 25:1 | ||||||||
| Screw rotation speed(r/min) | 140 | 120 | 100 | 90 | 85 | 75 | 70 | 60 | 60 |
| Main motor power(kw) | 4 | 7.5 | 11 | 15 | 22 | 37 | 45 | 55 | 75 |
| Barrel heating power(kw) | 3 | 6 | 9 | 12 | 18 | 30 | 36 | 42 | 56 |
| Center height(mm) | 1000 | 1100 | 1200 | 1300 | |||||
| Plasticization capacity(kg/h) | 30 | 50 | 70 | 80 | 100 | 130 | 160 | 200 | |
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
