Product Details:
|
| Condition: | New | Screw Design: | Double Screw |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Certificate: | CE ISO9001 |
| Place Of Original: | Shandong , China | After-sales Service: | Engineers Availiable To Service |
| Plastic Processed: | PVC | ||
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||

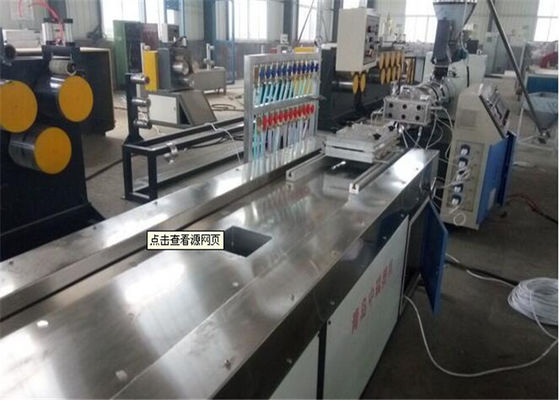

Profile / Panel / Board Making Twin Screw Extruder Machine Fully automatic
Quick detail:
(1)conical twin screw extruder is efficient equipment for all kinds of PVC powder extrusion.Equipped with different screw moulds and auxiliary machine,it can produce plastic pipes ,profiles,sheet,boards ,granules ect.
(2) The motor is siemens,the main motor and feeding motor can respectively by means of variable frequency adjustify speed control system.
(3) In according with different requirements of the clients ,we can equip the corresponding screw moulds and auxiliary machine
(4) Stable extrusion pressure ,with high output ,low cost ,and simple production process
Description:
1. Aorui plastic extruders are applied to PVC pipe extrusion line, PVC profile extrusion line, PVC modification pelletizing line, wood plastic composite product extrusion line and etc. Whole line is also available to supply, accdording to your requirements. Please kindly contact with our top sales directly for more details.
2. Series PVC Ceiling Making Machine is mainly used in PVC Ceiling, PVC door & window profiled material,wide door plate, window plate, extrusion of multi-holes pipe for passing through lines(four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin conical screw extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.
Applications:
1. Fetching in Europe and America advanced technology and uniting with domestic condition, our company develop this production line.
2. This production line is mainly used to produce PVC profile, such as Ceiling, Deck, Floor, Cornice, Plank, Windows, Door frame and board and etc.
Specifications:
| Model | SJ-30 | SJ-45 | SJ-55 | SJ-65 | SJ-75 | SJ-90 | SJ-100 | SJ-120 | SJ-150 |
| Screw diameter(mm) | 30 | 45 | 55 | 65 | 75 | 90 | 100 | 120 | 150 |
| L/D | 25:1 | ||||||||
| Screw rotation speed(r/min) | 140 | 120 | 100 | 90 | 85 | 75 | 70 | 60 | 60 |
| Main motor power(kw) | 4 | 7.5 | 11 | 15 | 22 | 37 | 45 | 55 | 75 |
| Barrel heating power(kw) | 3 | 6 | 9 | 12 | 18 | 30 | 36 | 42 | 56 |
| Center height(mm) | 1000 | 1100 | 1200 | 1300 | |||||
| Plasticization capacity(kg/h) | 30 | 50 | 70 | 80 | 100 | 130 | 160 | 200 | |
Competitive Advantage:
