Product Details:
|
Screw Number: | Two | Voltage: | 380V 50HZ |
---|---|---|---|
Certificate: | CE ISO9001 | Screw&Barrel Material: | 38Cr MOAIA |
Automatic Grade: | Fully Automatic | Place Of Original: | Shandong , China |
Warranty: | 12 Months | Payment Terms: | TT Or L/C |
High Light: | plastic pipe extrusion machine,plastic pipe production line |
Double Screw PVC Plastic Pipe Extrusion Line Production Line Stable performance
Quick detail
1. Φ 20-Φ 630 series PVC pipe extrusion line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agriculture and constructional plumbing, cable laying etc.

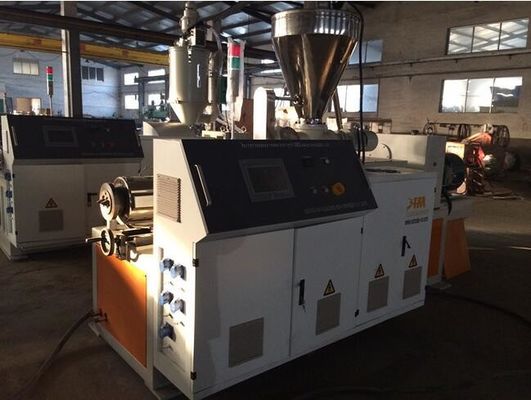

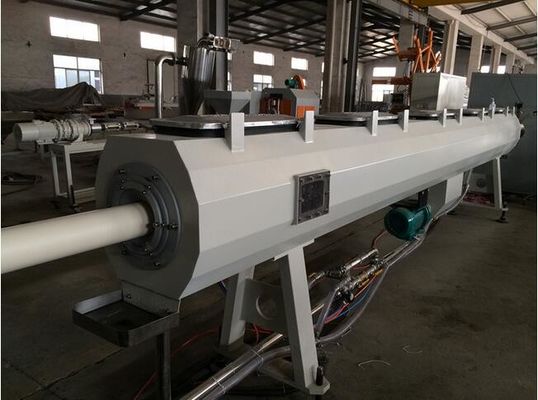

2. This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off, cutter, stake and etc. The extruder and haul-off adopt imported AC frequency speed controller, vacuum pump and haul-off motor all adopt superior products.
Description:
1. The cylinder adopts aluminum heater and air-cooling system. It has the characteristics of quick and heat radiation, convenient operation and maintenance and others.
2. The core of the screw adopts auto circular cool regulating system to raise efficiency. According to the different prescription demands of the consumers, the company can make up the most reasonable screw stem to reach the best plasticizing state and material flow qualit plastic extruder,pipe extruder.

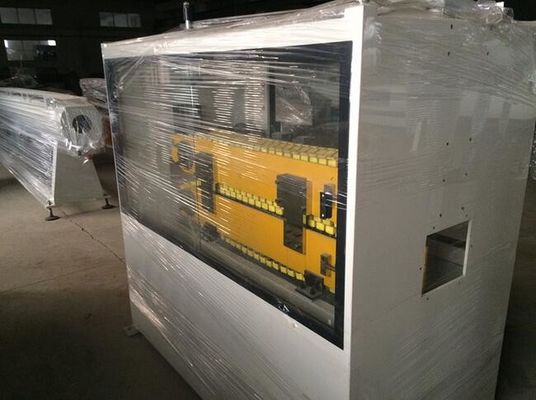

3. The drawing machine includes two-claw type , three claw type , four-claw type , six-claw type , eight-claw type , etc. Saw cutting or planet cutting can be applied , it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable , the production efficiency is high.
Main Technical Parameter
Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system , architectural water supply system , pavement of cables , etc . as well as pvc pipe material of all sorts of pipe caliber and wall thickness.
Our competetive advantages:
1. CE ISO9001 Certificate
2. Our engineers availiable to service
3. Old machine update
4. Spare parts and maintenance with reasonable cost price.
