Twin Screw PVC Pipe Extruder Machine , SJSZ65 PVC Pipe Making Machine Production Line
Quick detail
1. GF series plastic pipe material production line is mainly used in the area of agricultural water supply systerm , architectural water supply systerm , pavement of cables , etc. as well as PVC pipe materials of all sorts of pipe caliber and wall thickness.

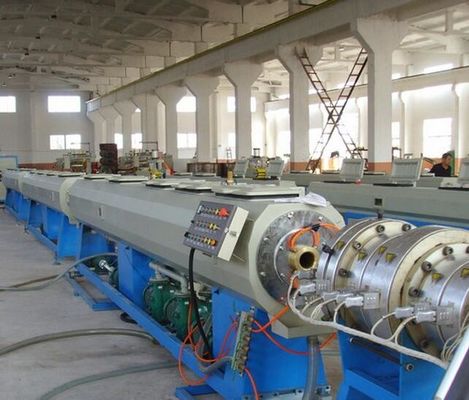

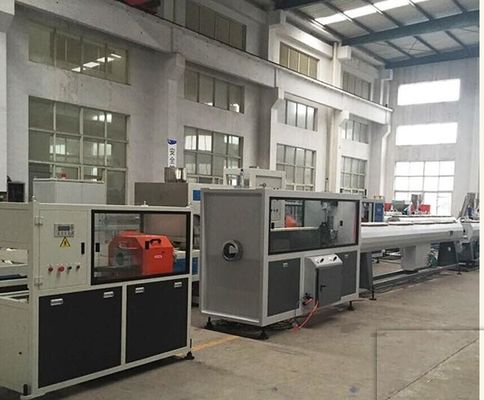

2. This machine group consists mainly of twin conical screws extruder , vacuum calibrating tank , tractor ,haul-off unit , cutting unit , tilter , etc. Single screw extruder and haul-off unit have applied imported A/C inverter. Both vacuum pump and driving motor have applied exvellent products.
Description:

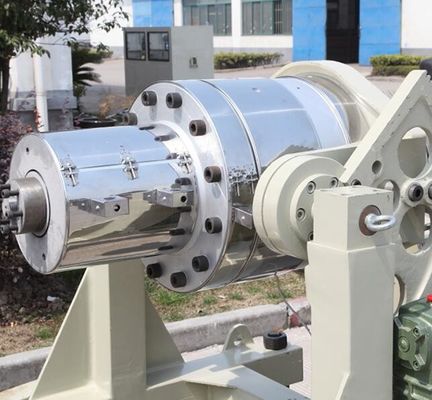

1. The production line is developed with the advanced technology of West Europe by our company. The main machine is SJSZ 51/105 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single-control stainless steel spraying calibration.
2. It avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cutting machine are combined with the front double calibration technology to make operation more flexible. Let you enjoy economic benefit which is brought by spearate-control double-tube extruding.
3. SJSZ series conical twin screw extruder is special equipments which can extrude and mold by using various kinds of PVC powders . Equipped with different kinds of molds and auxiliary machines , it can produce various PVC pipes , profiles , sheets , plates , bars and granule . It adopts PLC control and general temperature control meter . This machine is simple to operate and convenient to maintain .
Main Technical Parameter
| Model | GF-63 | GF-160 | GF-400 | GF-630 | GF-800 |
| Tube diameter range(mm) | 16-63 | 63-160 | 160-400 | 400-630 | 630-800 |
| Traction speed(m/min) | 1-16/0.6-6 | 0.6-6/0.4-4 | 0.4-4/0.2-2 | 0.2-1/0.2-1 | 0.1-0.5/0.1-3 |
| Total power(kw) | 85 | 186 | 300 | 400 | 480 |
| Length of the line(m) | 25 | 40 | 50 | 60 | 72 |
Application:
GF series plastic pipe production line is mainly used for manufacturing plastic PVC pipes with various tube diamters and wall thickness in the aspects of agricultrual and contructional plumbing ,cable laying etc.
Our competetive advantages:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
