Product Details:
|
| Brand Name: | Aorui | Power: | 37kw |
|---|---|---|---|
| Type Of Extruder: | Twin Screw Extruder | Voltage: | 380V 50HZ |
| Warrnaty: | 12 Months | Delivery Time: | About 30 Days |
| Place Of Original: | Shandong , China | Automatic Grade: | Fully Automatic |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
Fiber Reinforced Soft PVC Plastic Pipe Extrusion Line Extruder Machine For convey Gas
Quick detail
What is the feature of our PVC Hose Mahcine
1. High efficiency singel screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden,farm, lawn and so on.
Flow Progress
Material mix inner --layer extrusion inner-- layer forming→ spray cooling→ haul off→ fibre winding→ oven dryness→ outer layer extrusion→ outer layer forming→ spray cooling→ haul-off→ printer→ winder
Specifications:
1. The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid, it is widely used in such areas as mechanical engineering,coal mine,petroleum,chemical industry,agriculture irrigation,civil application(solar energy water heater,gas-jar), also it can be used in irrigating garden and lawn.
2. The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.
Applications:

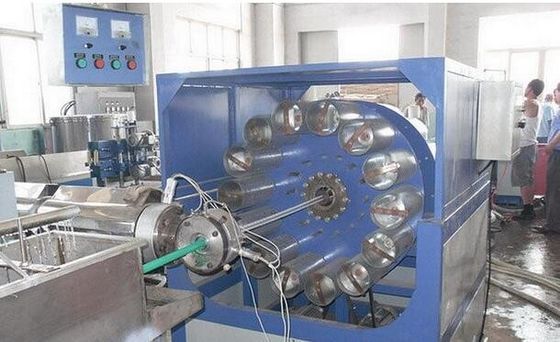

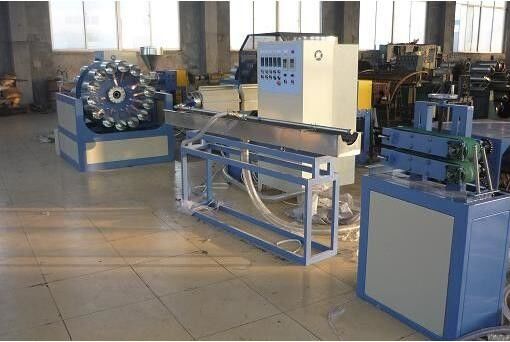

pvc fiber pipe line
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.
Main technical parameter
| Model | L/D Ratio | Screw | Material | Screw diameter | Output | Total Power | Center Height | Production Scale |
| SJ45/30 | 30:1 | Separative style | 38crmnal | 45mm | 60kg/hr | 35kw | 1000mm | Φ6-16mm |
| SJ65/30 | 30:1 | Separative style | 38crmnal | 65mm | 120kg/hr | 50kw | 1000mm | Φ16-50mm |
Main Composition
| Item | Quantity |
| SJ65/30 Single Screw Extruder | Two sets |
| Die and Mold | One set |
| Stainless steel cooling tank | Two sets |

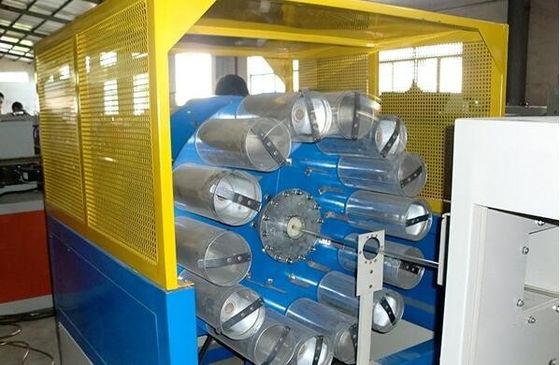

| Knitting Machine | One set |
| Flat Traction Engine | One set |
| Winder | One set |
Technical and after-sales service:
1. We are factory , we can inviate customer to visit our factory
2. CE ISO9001 Certificate
3. Our engineers availiable to go aborad to service
