Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ51/105 |
|---|---|---|---|
| Screw Design: | Double Screw | Screw&Barrel Material: | 38CrMOAIA |
| Type Of Extruder: | Twin Screw | Warrnaty: | 1 Year |
| Motor: | Siemens | Condition: | New |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||

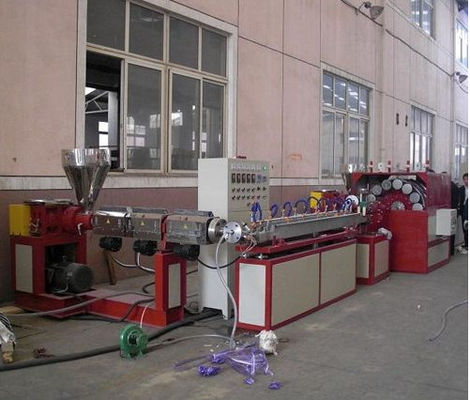

Snakeskin Plastic Pipe Extrusion Line Machine PVC Fiber Reinforced Pipe Making
Quick detail
1. The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.
2. Process:
conveying feeding→single screw extruder→extruding mould→spray cooling water tank→belt haul-off→fibre winder→warm up oven→

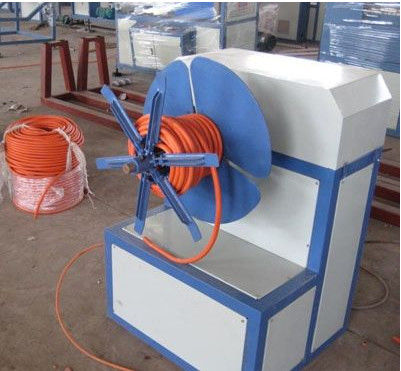

single screw extruder→mould→spray cooling water tank→belt haul-off →meter measure→winder→finished product inspecting&packing
Specifications:

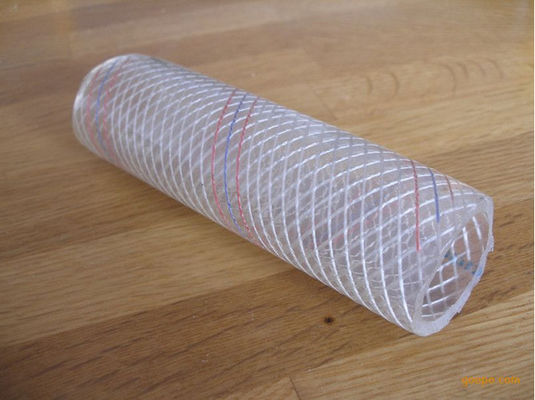

1. This line is designed to produce PVC fiber reinforced hose, the wall of which is three layers, outer and inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical property., It is mainly used for the transportation of high pressure of corrosive gas, and is widely used in the machinery, coal mine, oil, chemical, agriculture irrigation and building.
2. After changing some parts or add some equipments, the line is suitable for the producition of PVC screw thread colored pipe (shower pipe)with PET film inside, it has beautiful appearance and is used in solar water heater and so on.
Advantages of the pipes produced by this line
1. PVC fiber reinforced hose extrusion line is to produce PVC fiber hose, It has three layers, the inner and the outer layer is plastic material and the middle layer is fiber strength net.
2. It has good mechanical property and chemical property, which suits for the transportation of high pressure and corrosive air, water.
3. The soft hose owns such features as transparent and no poison, pressure resistance, pull-resist, corrosion-resist, beautiful outlook, soft, light and long lasting, and good pipes for air, water, gas, oil and other liquid, gas in the temperature from -5 degree to 65 degree.
Main technical parameter
| Model | SJ 45 | SJ55 | SJ65 | SJ75 |
| Extruder | SJ45/30 | SJ55/30 | SJ65/28 | SJ75/30 |
| Diameter range(mm) | 6-16 | 8-25 | 12-50 | 20-50 |
| Output(kg/h) | 20-40 | 30-60 | 40-80 | 60-110 |
| Installed Power(kw) | 35 | 42 | 50 | 65 |
Our Adcantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
