Reasonable Performance Strapping Band Machine High Output For Packing

Reasonable Performance Strapping Band Machine High Output For Packing

Brand Name: AORUI
Model Number: SJ65/33
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA
Condition:
New
Place Of Original:
Shandong , China
Raw Material:
PP PET
Voltage:
380C 50HZ
Screw&Barrel Material:
38Cr MOAIA
Automatic Grade:
Fully Automatic
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Strap Making Machine

,

Automatic Strapping Machine

Product Description



Reasonable Performance Strapping Band Machine High Output For Packing





Quick detail:

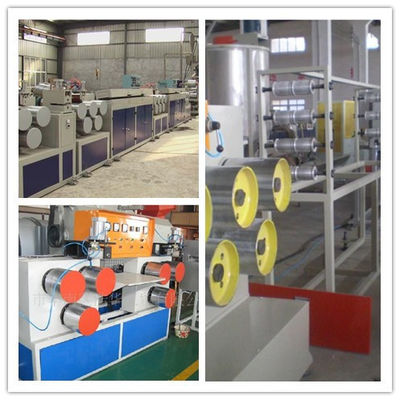

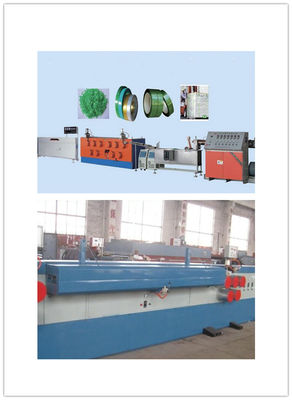

1. AORUI strapping making machine is composed of forced extruder (main machine), cooling tank,1st stretching unit,wind heat stretching oven,2ND stretching unit,character printer, embossing machine, light-heat shaping oven, water tank for shaping, 3rd stretching unit and light weight curler.The standard installation shall be in line and in order, and the technological process of the machine as shown in following figure.



2. Besides advanced processing equipment, we have also set up individual designing and developing department to enhance the processing technology so as to provide our esteemed customers with whole sets of extrusion production line with European standard professional design and advanced technology according to special requirements.








Description:



1. Single screw or twin screw technique for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line. The dosing pump ensures continuous and stable production.



2. The filter of double coulmns with four working positions can get rid of impurity effectively. Single strap or double strap for option.



3. Even plasticization and stable extrusion with PC automatic control for the full line. As per different requirements, changing A coating materials for make strap have better and special function. For example, the strap for packing cotton, can be from enhancing the breaking strength and joint strength when welding strap.









Technological parameter:



Strap width 5-22mm
producti thickness 0.5-1.4mm
Production speed 280m/min
Stretching ratio 7-12
Max.output 30-200kg/h











Competitive Advantage:



1.We provide one-year warranty guarantee for all the machines. We supply long term spare parts for every customer and 24 hours technical suport by email, calling and door to door service;



2.We run machines in our factory before delivery. Clients check machines running in our factory, and when machines arrive in Client's factory, we will send our engineer to run machines in client's factory too.
