Product Details:
|
| Certificate: | CE ISO9001 | Plastic Processed: | PP |
|---|---|---|---|
| Key Word: | PP Strap Band | Automatic Grade: | Fully Automatic |
| Application: | PP Strap Band | ||
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||
CE Certificate PP Strap Band Extrusion Line , 200kg/h PP Strap Band Making Machine For Packing
Quick detail:
Features of plastic strap band machine:
1). It can use single screw or double screw according to your requirement. It can use 100% recycling material.
2). Even plasticization and table extrusion, PLC automatic control
3). Measurement pump ensure consecutive and stable production
4). Two pole four station filter can efficiently eliminate impurity
5). Large hauling force stretch device and insulation oven
6). Large capacity stainless steel water tank, automatically water level control.
Description:
1. Single screw or twin screw technique for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line.
2. The dosing pump ensures continuous and stable production. The filter or double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.
3. PP Bale Strap Machine is a renewed and improved design, and is special for producing the polypropylene packing strip.

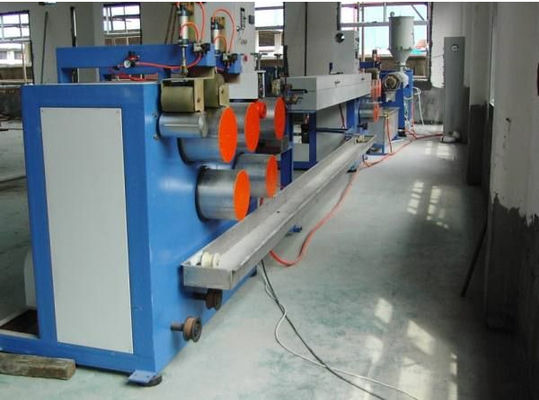

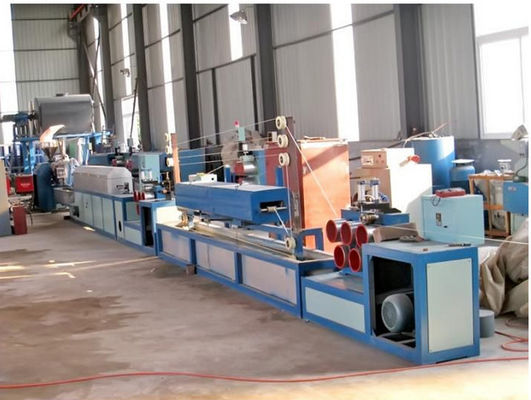

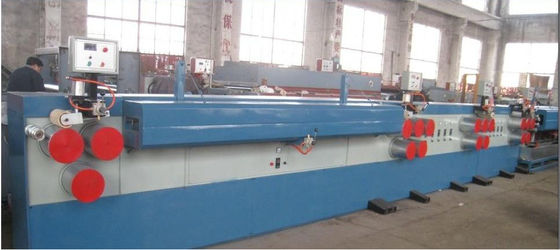

4. The whole machine includes the extruder, mould, cooling tank, haul-off device, embossing device, winder and electrics controlling part.
Main technical parameters:
| Model number | ST-90 |
Main motor |
30-90KW |
Motor drive |
AC |
Power supply |
380V 50HZ or customized |
Strap width |
9-25mm |
Strap thickness |
0.5-1.5mm |
Drying volume |
100kg/h |
Loading power |
3KW |
Daily output |
1000-2000 kg/day |
Worker |
2-3 |
Workshop size(L*W*H) |
25000*5000*6000mm |
Application :

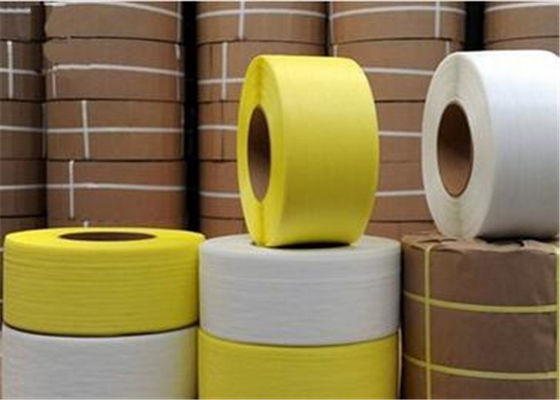

The use of PP strap band is convenient and it can adopt common steel fastening for connection. It also is suitable for various kinds of hand-operated of table packing machine and large auto-packaging machine of enterprises
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
