Product Details:
|
| Automatic Grade: | Fully Automatic | Screw Design: | Double Screw |
|---|---|---|---|
| After-sales Service: | Engineers Availiable To Service | Brand Name: | Aorui |
| Voltage: | 380V 50HZ | Model Number: | SJSZ65/132 |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
PVC Vertivcal Type Double Wall Corrugated Pipe Extrusion Machine , PE PVC Plastic Corrugated Pipe Production Line
Quick detail:
1. Product Introduction
This pipe extrusion line suits to produce the polyolefin pipe as HDPE, PP,PE PVC etc in high production speed. It is of low power consumption, high output, high automation and reliable production.
2. Optimized spiral die ensure the melt distribution uniform to make the pipe wall uniform and guarantee the pipe pressure. Equipped copper Vacuum calibration sleeve with water lubrication ring, twin-chamber vacuum tank with spraying cooling and semicircular Nylon support, to ensure fast calibration, increase the production capacity and lower the operation. These designs are especially good for big diameter pipe production and high speed production.
Description:

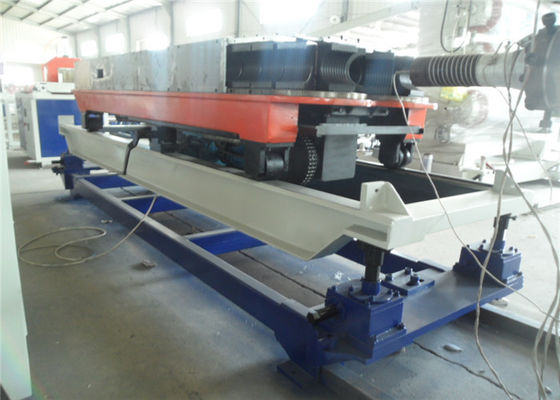

PE PVC Double Wall Corrugated Pipe Extrusion Machine
1. This line is mainly used to process nylon, polyethylene (PE), polypropylene (PP) and PVC into small diameter double corrugated pipe.

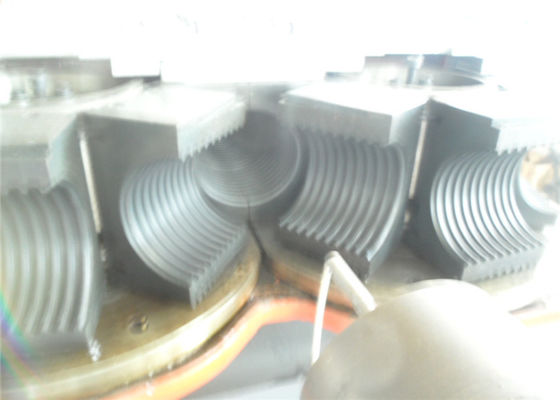

2. Pipes are formed in one step through specialized moulds. Thus pipes are of smooth internal & outer surface and even corrugation.
3. The final pipes are available as protection pipe for wire and cable, drainpipe for washing machine and air-conditioner, gas hose for vacuum cleaner, and air vent, etc.
4. The Diameter of pipe is 10-50mm.
Specifications:
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80I | SJZ-80II | SJZ92 |
| Screw diameter | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 80/172 | 90/188 |
| Max. rotational screw(rpm) | 34.7 | 34.7 | 34.7 | 34.7 | 25 | 25 | 25 |
| Mian motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 55 | 110 |
| Capacity(kgs/h) | 60 | 80 | 120 | 220 | 320 | 320 | 600 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 5500 | 8000 |
| Dimensions | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
Application:
1. This kind of corrugated pipe is mainly used for underground water drainage system.

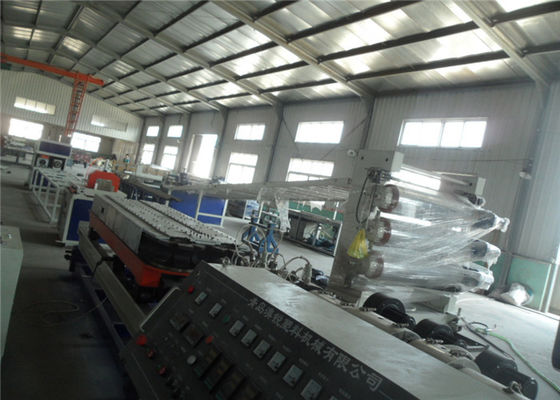

2. It is fully computer/instrument controlled, automatic production line. It features high and stable output capacity, and highly automatic operation.Our production range is Φ90~Φ200mm.
Competirive advantages:
