Product Details:
|
Raw Material: | WPC | Condition: | New |
---|---|---|---|
Automatic Grade: | Fully Automatic | Certificate: | CE ISO9001 |
Place Of Original: | Shandong , China | Port: | Qingdao |
High Light: | Wood Plastic Extruder,Wood Plastic Composite Extruder |
PVC PWC Wood Plastic Composite Board Extrusion Line , PLastic pvc Board Production Line For Construction
Quick detail:

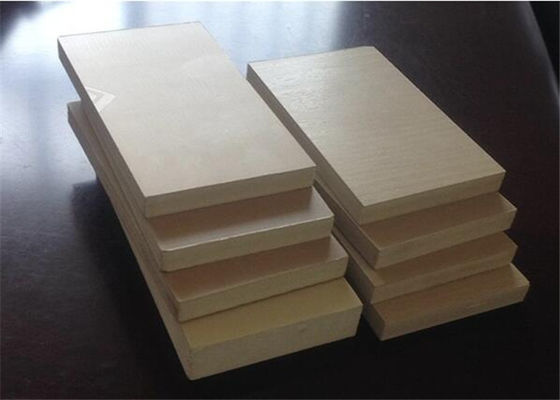

1. The wood plastic panelout fromour line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled reuse.It gah been widely used in wide door, pertition panel, construction template, base plate of container, furnish panel, etc.
2. Application: Such as wire plate , environment protection material , venting equipment , semiconductor wquipment , etc.
3. Production scope:thickness 1-30mm , width 3000mm(under)
Description:
1. PVC Foam Board Production Line is made and designed by our company through many years experience involving in manufacutrring PVC free foamed board production line and PVC Crust Foamed Board Production Line .PVC Foamed Board Prodcution Line has such characteristics as high surface hardness / good smoothness ,etc .

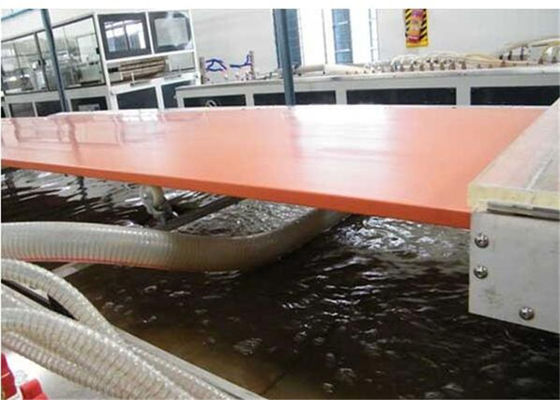

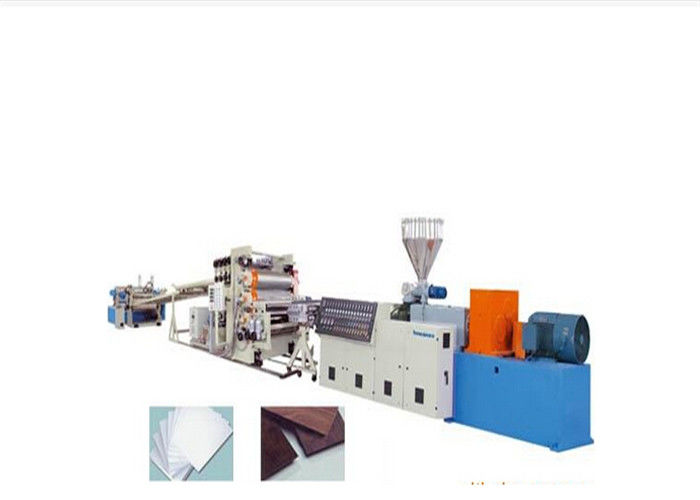

2. The unit adopts special-designed SJZ80 conical twin screw extuder. This production line mianly consist of the host extruder, mold, vacuum forming tank, haul-off machine, cutting machine, stacker and so on.
The host extruder using the computerized control panel, adopt the Japanese Omron temperature controller, AC/DC motor, ABB speed gonervor and SIMENS contactor.
3. The mold adopt the special treatment, it have the advancetage of foaming quaickly and foaming well.
The whole line have the advantage of easy operation and steady.
Specifications:
Mode | Products max width(mm) |
Max capacity (kg/h) |
Extruder mode |
Extruder power (kw) |
Cooling water (m³/h) |
WPC-300 |
300 |
240 |
SJZ65/132 |
37 |
7/7 |
WPC-500 |
500 |
350 |
SJZ80/156 |
55 |
8 |
WPC-900 |
900 |
350 |
SJZ80/156 |
55 |
9 |
WPC-1200 |
1200 |
450 |
SJZ92/188 |
110 |
10 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
