Product Details:
|
| Capacity: | 50-100kg/h | Power: | 37KW |
|---|---|---|---|
| Plastic Processed: | PET | Screw Design: | Single Screw |
| Name: | Strapping Band Machine, Strapping Band Making Machine | Strap: | Single Or Double Strap |
| Straps: | 1-6straps | ||
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

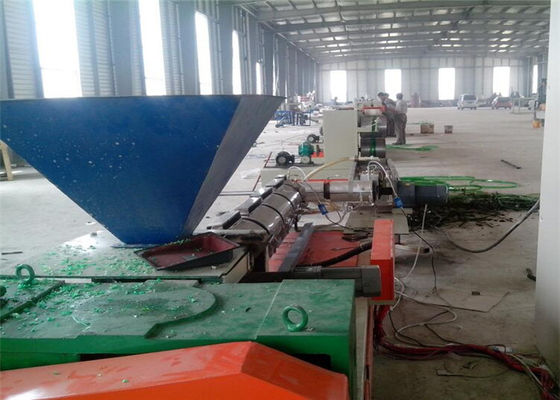

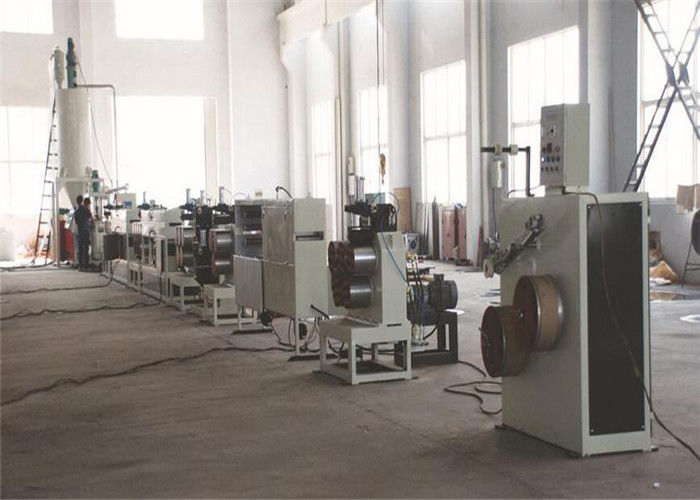

PET Packing Belt Production Line , 100% Recycled PET Flakes Packing Belt Extrusion Machine
Quick detail:
1. Single screw or twin screw technique for option depending on the requrement. 100% recycled flakes can be used for production.
2. Even plasticzation and stable extrusion with PC automatic control for the full line, the dosing pump ensures continuous and stable production.
3. The fiflter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.
Description:
1. CE Approved Plastic Machine PET Packing Belt Production Line
Technical details:
-Processing material: 100% recycled PET flakes or virgin PET
-Product width: 9-32mm
-Strap thickness: 0.4-2mm
-Quantity of extruded straps: 1-2
-Output: 160kg/h
2. Production Process:
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. As per different requirements, changing A coating materials for make strap have better and special function. For example, the strap for packing cotton, can be from enhancing the breaking strength and joint strength when welding strap.
Technological parameter:
|
Strapping diameter |
6-32mm |
|
Screw diameter |
65 |
|
L/D |
34:1 |
|
Screw material |
38CrMoAlA |
|
Barrel material |
38CrMoAlA |
|
Barrel heating |
Casting aluminum |
|
Barrel cooling |
Water |
|
Driving motor |
37kw |
|
Cooling tank length |
1200mm |
|
Seven Pre-heating roller |
Dia. 215mm |
|
Stretch oven |
Carbon Steel welding |
|
Heating power |
15kw |
|
Five stretch roller |
Dia. 215mm |
|
Three cooling roller |
Dia. 215mm |
|
Calibrating box length |
4000mm |
|
Three roller pulling |
Dia. 215mm |
|
Winding unit |
Automatic winding |
|
Total installation power |
~105kw |
|
Machine dimension |
38000x1300x28000mm |
|
Weight |
18ton |
Application :
PET production line for packing belt is new equipment developed by our company ,by combining the characteristics of our plastics product trade ,collecting advantages of the same type machine made in domestic and overseas markets and repeating practice in production.
Competitive Advantage:
1. CE ISO9001 Certificate
2. We are factory , welcome customer to visit our factory
3. Our machine have exported to all over the world
