PP PE Plastic Pipe Production Line , Single Screw Plastic Pipe Extruder 380V 50HZ

Brand Name:	AORUI
Model Number:	SJ90/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE & ISO9001

Condition:

New

Automatic Grade:

Fully Automatic

Brand Name:

Aorui

Screw Design:

Single Screw

Voltage:

380V 50HZ

Port:

Qingdao

Certificate:

CE ISO9001

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic pipe extruder machine

plastic pipe production line

Product Description

PE HDPE LDPE Plastic Pipe Injection Extruding Machine , PP PE Plastic Pipe Production Line

Quick detail:

1. HDPE pipe injection extruding machine / large diameter pipe extruder equipment / PE PP PVC Plastic pipe extrusion production line.

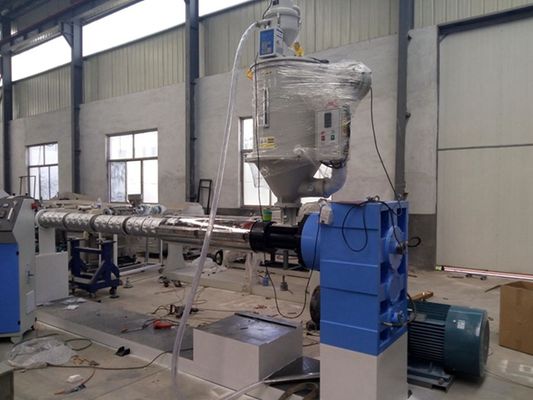

2. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin.

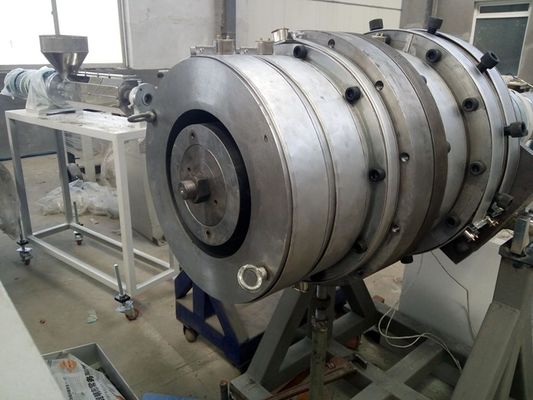

3. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.

Description:

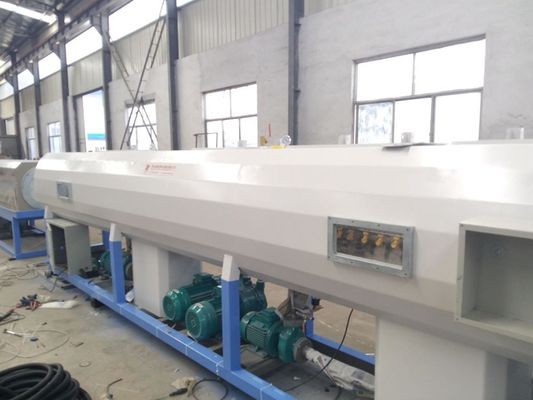

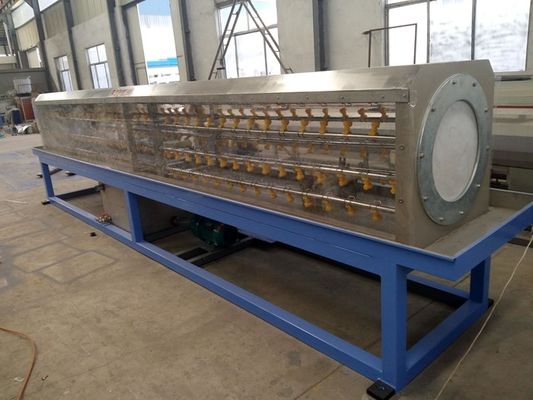

1. This PPR pipe production line include: material charger, SJ series single screw extruder, pipe mould, vacuum calibration tank, spray cooling tank, haul-off, no-duct cutter, stacker, winder(for small pipes). The hual-off equiped metering device to count the length.

2. China supplier PE/PPR plastic pipe production line

2.1. Diameter: 16-110mm,
2.2. Output: 120-200kg/h,
2.3. Extrusion speed: 0.1-10m/min,
2.4. Installed power: 110kw

3. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE silicon core tube , ordinary PP-R, PE , PEX and PE-RT pipes.

Specifications:

Model number	PPR-16/63	PPR-63/110	PPR-50/160
pipe diameter	16-63mm	63-110mm	50-160mm
max output	120kg/h	120kg/h	200kg/h
production rate	2-10m/min	1-10m/min	1-8m/min
extruder model	SJ65/33	SJ65/33	SJ75/33
installed power	100kw	110kw	150kw
center height	1000mm	1000mm	1000mm
installation area	353.02.0m	383.12.2 m	383.22.2m

Application:

1, pure water, drinking water pipeline;
2, industrial water and chemical transport, emissions;
3, domestic hot and cold water pipe system;
4, beverage, drug delivery systems of production;
5, compressed air pipe;
6, other industrial, agricultural management

Competitive Advantage:

24 hours services;
Overseas installation;
Free operation training and technology formula transfer;
Old machine update;
Spare parts and maintenance with reasonable cost price.
