Product Details:
|
| Condition: | New | Plastic Processed: | PVC |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Certificate: | CE ISO9001 |
| Screw Design: | Twin Screw | Warrnaty: | 1 Year |
| Payment Terms: | TT Or L/C | ||
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||

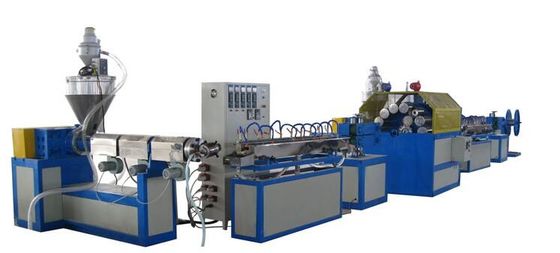

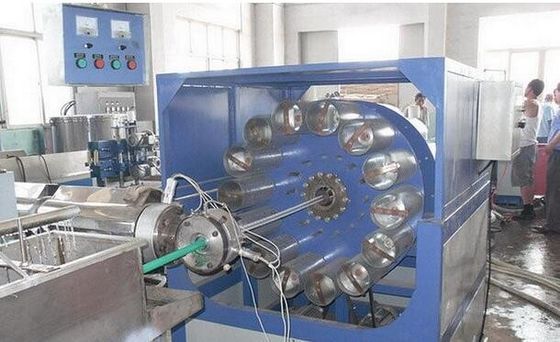

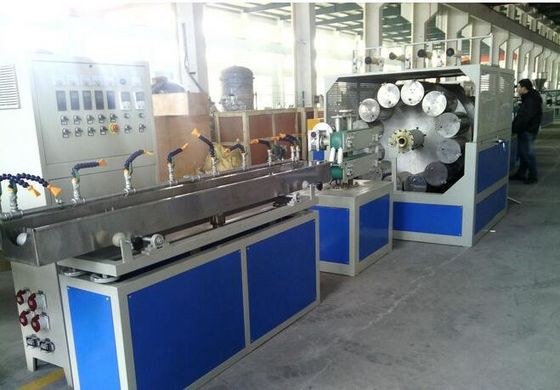

PVC Fiber Reinforced Pipe Extrusion Line , PVC Fiber Reinforced Braided Pipe Production Line
Quick detail
1. This line is designed to produce PVC fiber reinforced hose, the wall of which is three layers, outer and inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical property., It is mainly used for the transportation of high pressure of corrosive gas, and is widely used in the machinery, coal mine, oil, chemical, agriculture irrigation and building.
2. After changing some parts or add some equipments, the line is suitable for the producition of PVC screw thread colored pipe (shower pipe)with PET film inside, it has beautiful appearance and is used in solar water heater and so on.PVC reinformed hose mainly used in coal mine, oil, chemical, agriculture irrigation, gas and building.
Specifications:
1. PVC fiber reinforced soft pipe, also called as PVC net grid pipe, is commonly called as plastic plica tube, suitable for transporting corrosive and compressive gas and liquid. extensively apply to machinery, colliery, petroleum, chemical industry, agriculture irrigation, building construction and civil construction (such as solar water heater, gas tank, natural gas and so on). Now it is also used for irrigating parterre and lawn.)
2. DETAILED FEATURES
2.1) The main motor, machine and tractor operators using variable frequency control system, easy to adjust, reliable to run, stable, low energy consumption.
2.2) The screw of extruder with special design, better effective plasticization of raw materials, stable production.
2.3) High efficient, easy in installation and maintain.
2.4) Adopting advanced world famous brand components in pneumatic parts,electric parts and operation parts.
2.5) Running in of high automatization and intellectualization, no pollution.
2.6) Support with professional technical persons and one year warranty.
Main technical parameter
| SPECIFICATIONS FOR OUR MAIN MODELS | |||||||
| Model | Screw Diameter(mm) | L/D | Screw Material |
Main Motor(KW) | Total Power(KW) | Central Height(mm) | Pipe Diameter(mm) |
| SJ-45/55 | 45/55 | 30 | 38CrMnAl | 7.5/11 | 35 | 1000 | 6-14 |
| SJ55/65 | 55/65 | 30 | 38CrMnAl | 11/15 | 46 | 1000 | 16-38 |
| SJ75/90 | 75/90 | 30 | 38CrMnAl | 18.5/37 | 80 | 1000 | 50-102 |
Our Adcantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
