Product Details:
|
| Automatic Grade: | Fully Automatic | Warranty: | 1 Year |
|---|---|---|---|
| Voltage: | 380V 50HZ | Trademark: | Aorui |
| Certificate: | CE ISO9001 | Place Of Original: | Shandong , China |
| Condition: | New | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

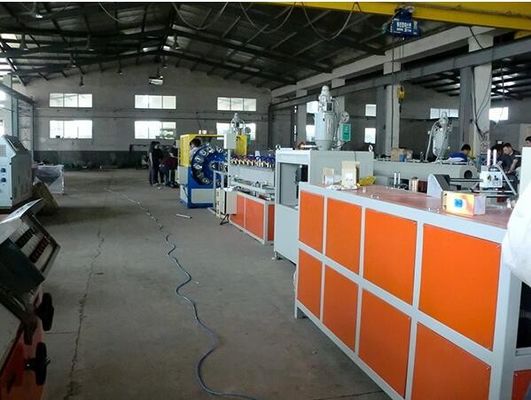

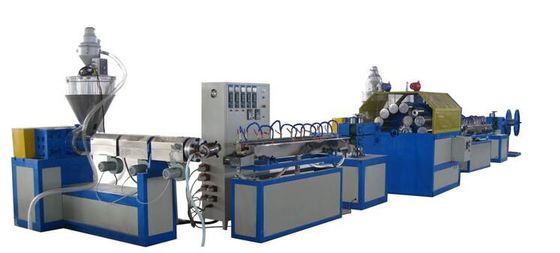

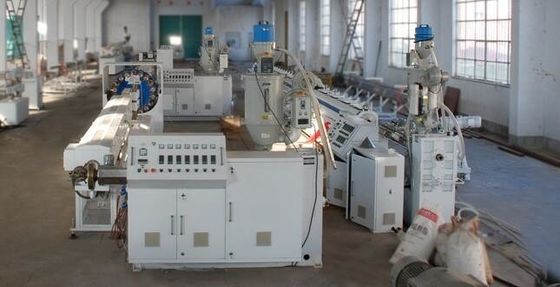

PVC Fiber Reinforced Garden Pipe Production Line , PVC Fiber Reinforced Soft Plastic Pipe Extrusion Line
Quick detail
1. This line is the newly-developed product of our company, which is mainly used to produce liquid-conveying PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc.
2. This line consists of
extruders, spraying water tanks, hauling-off units, fiber-winding units, Coiler, etc. And it features with reasonable configuration, special structure, easy operation, convenient maintenance, high continual production capacity, etc, so it gets warm welcome and trust from clients.
Specifications:
1. Extrusion Equipment of PVC pipe making machine :Single screw extruder takes the new and efficient BM Screw,and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose,with a uniform material,convenient adjustment to eliminate extrusion fusion line and so on.
2. Vacuum shaping devices of PVC pipe making machine :vacuum spray tank,spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material.
3. Traction machine of PVC pipe making machine :two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements..
4. Cutting machine of plastic pipe making machine :No dust rotating knife..
5. Stacking devices of PVC pipe making machine :automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder..6.Electrical control system for a variety of options (eg: PLC automatic control system),good production speed,stability,and the control system is simple and easy to operate..
Main technical parameter
| model | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| pipe dia (mm) | φ16-φ63 | φ75-φ160 | φ125-φ250 | φ180-φ315 | φ200-φ450 | φ355-φ630 |
| vacuum tank length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Vacuum degree (Mpa) | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 |
| Max.traction (N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| hauling speed(m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| working hauling length(mm) | 1000 | 1500 | 1500 | 1500 | 1800 | 1600 |
| compressed air (m3/h) | 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
| water comsuption (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Total length of line (m) | 20 | 22 | 30 | 30 | 36 | 42 |
Our Adcantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
