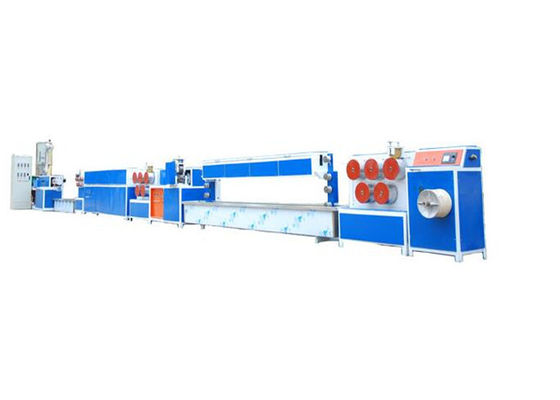

380V advanced Pet Pp Strap Making Machine For Packing Belt , Fully Automatic

380V advanced Pet Pp Strap Making Machine For Packing Belt , Fully Automatic

Quick detail:

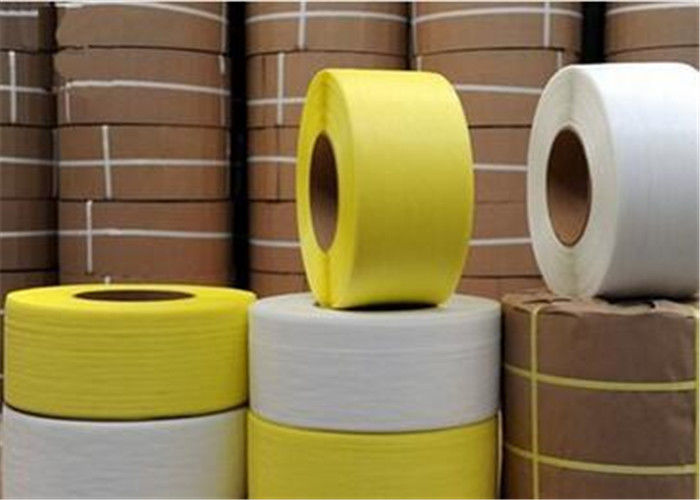

PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

Description:

1.Adopts advanced CSW-800 comby dehumidify dryer system. It make sure the material humidity at 80PPM at 50PPM dew point. Meanwhile, it compact material and increase the viscidity.

2.Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.

3.Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.

4.Produce different model product at one die and mould. Adopts automatic hydraulic screen exchanger .

5.Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product's stretch intensity.

6.The strap after formed will be warm and anneal treated to wipe off the part stress remained after stretch. It makes molecule tropism be steady to avoid strap distortion caused by storage.

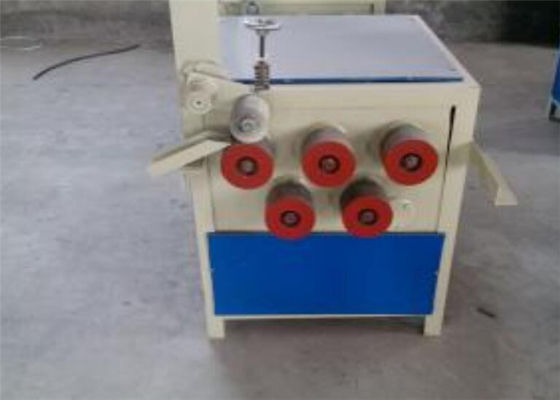

7.The winder adopts double work position and auto-meter. It is easy operation and convenient coil change.
Centralized electrical control, PLC self-correcting control. Easy operation.

Technological parameter:

Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
