Product Details:
|
| Brand Name: | Aorui | Voltage: | 380V 50HZ |
|---|---|---|---|
| Warranty: | 1 Year | Place Of Original: | Shandong , China |
| Power: | 37kw | Application: | Pvc Pipe |
| Certificate: | CE ISO9001 | Automatic Grade: | Fully Automatic |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
50HZ Plastic Fiber Pipe Making Pvc Pipe Production Line / PVC Pipe Extruder
Quick detail
1. Plastic PVC Fiber Reinforced Hose Extrusion Production Machine Line
PVC fiber reinforced hose production line is the product equipment special for the production of the PVC twisted pressure tube. It is widely used in the industry, farming, forestry, architecture ect.
2. The allocation for the set of the equipment:

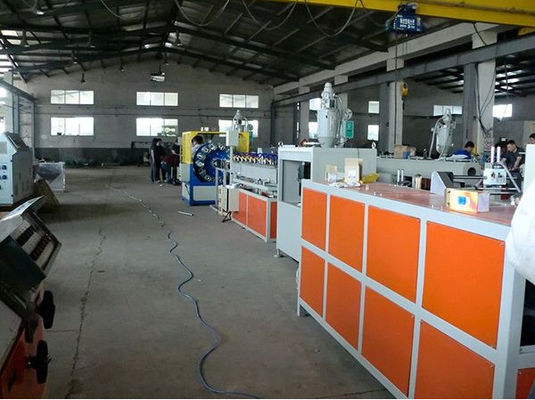

Twin screw lining extrusion system, cooling device, traction, web, single screw outer extrusion system, cooling device, automatic reeling system.
Specifications:

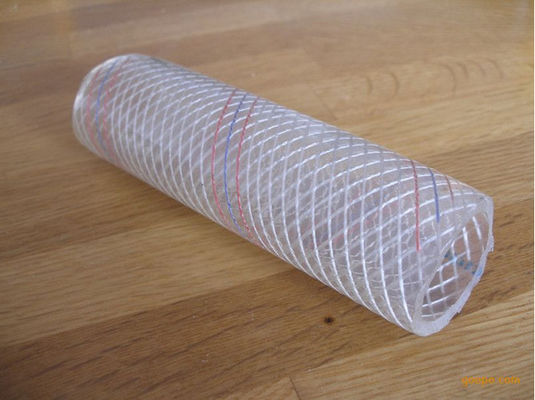

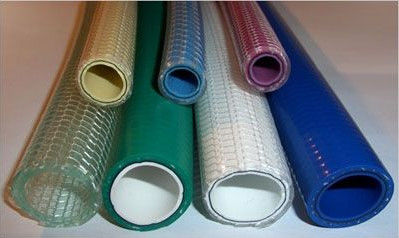

1. PVC Polyester Fiber reinforced hose is used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family. The hose used for foodstuffs is made of special materials.
2. With polyester open mesh braiding permanently encapsulated in walls of clear, flexible PVC tubing PVC Polyester Fiber reinforced hose is light, flexible, durable, non-toxic without odor, anti-erosion and adaptable to high pressure condition.Corrosion and abrasion resistant with flexibility similar to rubber but with much longer life.
3. Process flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
Application of pvc fiber reinforced pipe:
The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application (solar energy water heater , gas-jar) , also it can be used in irrigating garden and lawn.
Main technical parameter
| Model | SJ 45 | SJ55 | SJ65 | SJ75 |
| Extruder | SJ45/30 | SJ55/30 | SJ65/28 | SJ75/30 |
| Diameter range(mm) | 6-16 | 8-25 | 12-50 | 20-50 |
| Output(kg/h) | 20-40 | 30-60 | 40-80 | 60-110 |
| Installed Power(kw) | 35 | 42 | 50 | 65 |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
