Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Port: | Qingdao |
| Screw Design: | Double Screw | Warranty: | 1 Year |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
Double Screw Plastic Pipe Extrusion Line For Reinforced Garden Hose / Snakeskin Pipe
Quick detail

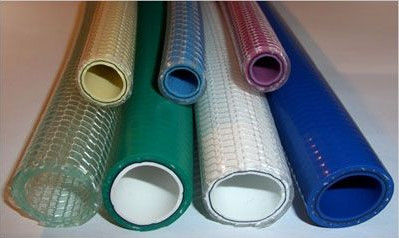

1. This line is the newly-developed product of our company, which is mainly used to produce liquid-conveying PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc.
2. Pipe Application:
conveying pipes for air, water, coal gas, oil and other liquid and gas.
Specifications:

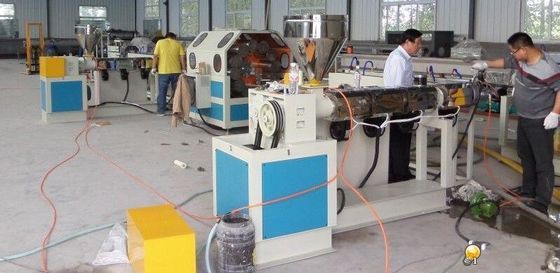

1. This line consists of

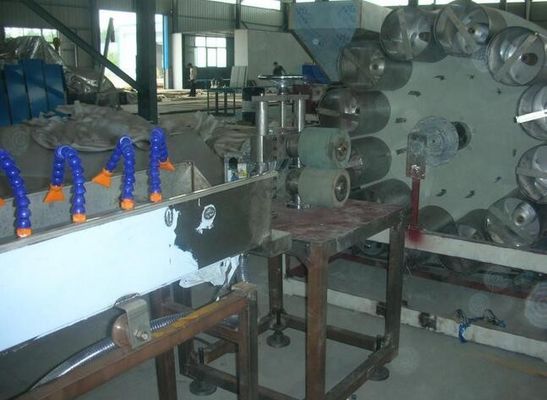

extruders, spraying water tanks, hauling-off units, fiber-winding units, Coiler, etc. And it features with reasonable configuration, special structure, easy operation, convenient maintenance, high continual production capacity, etc, so it gets warm welcome and trust from clients
2. High efficiency singel screw extruder. It can produce PVC garden hose or pvc soft hose. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm. This pvc hose is mostly used as home, garden,farm, lawn and so on.
3. Flow chart:
Sevenstars Machinery:PVC material ---> SJ65/28 extruder 1 --->Moud1 ---> water cooling tank 1--->haul off machine 1 ---> oven ---> pleaching unit--->SJ65/28 extruder 2 ---> Mould2 ---> water cooling tank2 ---> haul off machine 2 --->winder --->pipe rolls
Main technical parameter
| Model/Spec. | Diameter range (mm) | Extruder model | Line speed (m/min) | Max. Capacity (kg/h) | Installed power (KW) |
| TPXG20 | 10-20 | TSJ45/28 | 1-10m/min | 40 | 30 |
| TPXG40 | 16-40 | TSJ65/28 | 1-8 m/min | 80 | 60 |
| TPXG50 | 20-50 | TSJ75/28 | 1-5m/min | 100 | 75 |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
